The LAN7500-ABZJ-TR is a high performance high speed USB 2.0 to 10/100/1000 Ethernet controller. With applications ranging from embedded systems, set-top boxes and PVRs, USB port replicators, USB to Ethernet dongles, and test instruments, the device is a high-performance, low-cost solution for USB to Ethernet connectivity.

The LAN7500-ABZJ-TR includes an integrated 10/100/1000 Ethernet MAC and PHY, filtering engine, USB PHY, Hi-Speed USB 2.0 device controller, TAP controller, EEPROM controller, and a FIFO controller with 32 KB internal packet buffer.

The internal USB 2.0 device controller and USB PHY are compliant with the USB 2.0 Hi-Speed standard. The device implements control, interrupt, high-capacity input, and high-capacity output USB endpoints.

The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX, and is compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards. ARP and NS offload are also supported.

Product Attributes

Protocol: Ethernet

Function: Bridge, USB to ethernet

Interface: USB

Standard: USB 2.0, 10/100/1000 Base-T/TX

Voltage - Supply: 1.2V, 2.5V, 3.3V

Operating Temperature: 0°C ~ 70°C

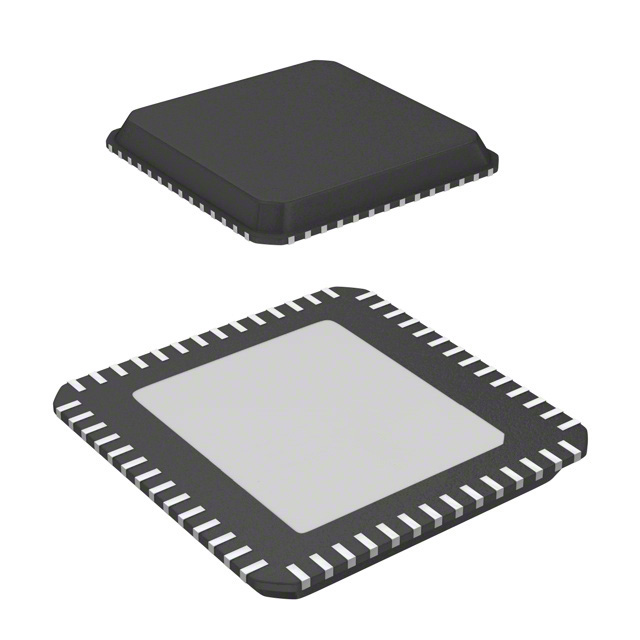

Package/Shell: 56-VFQFN Exposed Pad

Supplier Device Package: 56-QFN (8x8)

Target Applications

- Embedded Systems/CE Devices

- Set-Top Boxes/PVRs

- Networked Printers

- USB Port Replicator

- Standalone USB Ethernet Dongle

- Test Instruments/Industrial
