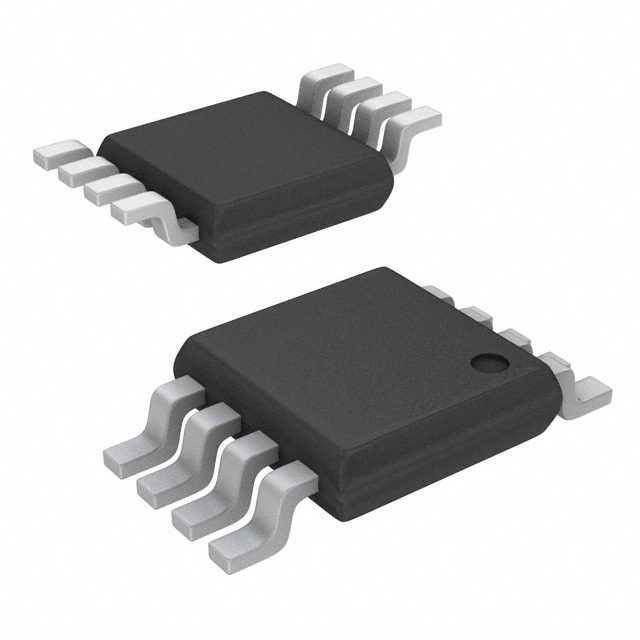

P3T1750DPZ - I3C, I2C-bus interface, 1 °C accuracy, digital temperature sensor

General Description

P3T1750DPZ is a temperature-to-digital converter from -40 °C to +125 °C range. It uses an on-chip band gap temperature sensor and A-to-D conversion technique with an overtemperature detection.

Features and Benefits

I3C (up to 12.5 MHz) and I2C (up to 3.4 MHz) interface

– 32 I2C target addresses

– 32 I3C Provisional-ID

Supply range: 1.4 V to 3.6 V

Programmable overtemperature alerts

Resolution: 12 bits (0.0625 °C)

Accuracy:

– 1.4 V < VCC < 3.6 V

– ±1 °C (maximum) from -40 °C to +125 °C

Low quiescent current: 4.1 μA supply current (typical)

Applications

IoT

Portable devices

SSD

Industrial controllers

Servers

PC/Notebook
