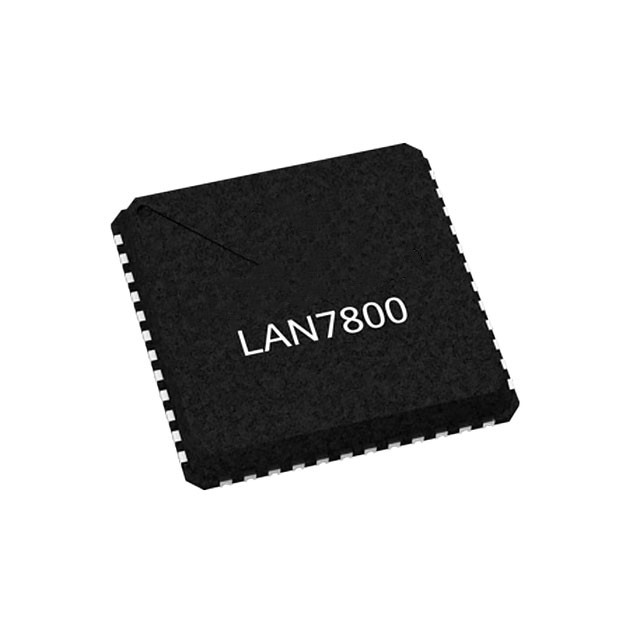

The LAN7800/Y9X is a high performance SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet controller with integrated 10/100/1000 Ethernet PHY.The applications of the LAN7800/Y9X range from Notebook/Tablet Docking Station, Set-Top Boxes, and PVRs, to USB Port Replicators, USB to Ethernet Dongles, embedded systems and test instruments, making it a high-performance, cost-effective USB to Ethernet connectivity solution.

The LAN7800/Y9X includes an integrated 10/100/1000 Ethernet MAC and PHY, filtering engine, USB PHY, SuperSpeed USB 3.1 Gen 1 device controller, EEPROM controller, and FIFO controller with internal packet buffering.

The internal USB 3.1 Gen 1 device controller and USB PHY are compliant with the USB 3.1 Gen 1 SuperSpeed standard.The LAN7800 implements control, interrupt, high-capacity input and high-capacity output USB endpoints.

The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX, and is compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and 802.3az (Energy Efficient Ethernet) standards. ARP and NS offload are also supported.

Specification

Protocol: Ethernet

Function: Controller

Standard 10/100/1000 Base-TX PHY

Voltage - Supply: 1.2V, 2.5V, 3.3V

Current - Supply: 1 ~ 4mA

Operating Temperature: 0°C ~ 70°C

Package/Shell: 48-VFQFN Exposed Pad

Supplier Device Package: 48-SQFN (7x7)

Target Applications

- Automotive Infotainment Systems

- Laptop/Tablet Docking Station

- Detachable Laptop

- USB Port Replicator

- Standalone USB Ethernet Dongle

- Embedded Systems/CE Devices

- Set-top Boxes/VCRs

- Test Instruments/Industrial
