The MCP47CVD01T-E/UN is a single-channel, 8-bit, buffered voltage output digital-to-analogue converter (DAC) with MTP memory and an I²C compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It features .1 LSB integral nonlinearity (INL), low power consumption, and a fast settling time of 4 µs. The device has an integrated MTP memory that can be written up to 32 times per specific register. It is suitable for consumer and industrial applications such as setpoint or offset trimming, sensor calibration, and motor control applications.

Product Features

Number of bits: 8

Number of digital-to-analogue converters: 1

Accumulation time 4 µs

Output Type: Voltage - Buffered

Differential outputs: None

Data interface: I²C

Signal Source Type: External, Internal, Power

Voltage - Supply, Analogue: 1.8V ~ 5.5V

Voltage - Supply, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±0.1 (max), ±0.1 (max)

Construction: Resistor String DAC

Operating Temperature: -40°C ~ 125°C

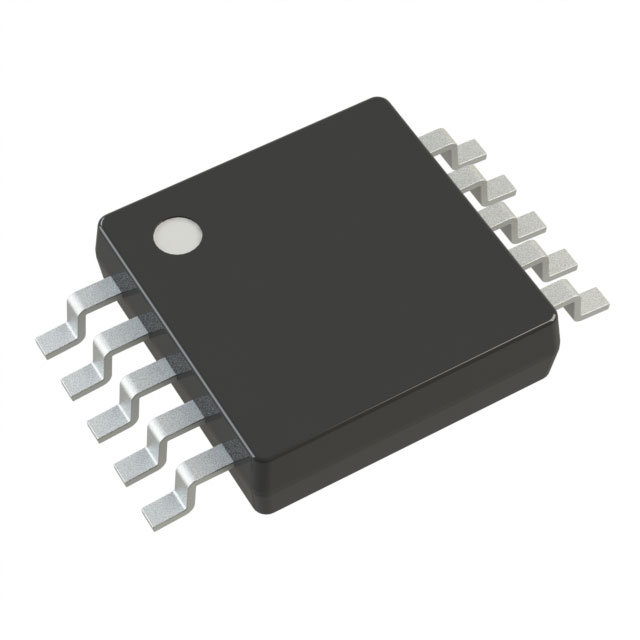

Package/Housing: 10-TFSOP, 10-MSOP (0.118" wide, 3.00 mm)

Supplier Device Package: 10-MSOP

Mounting Type: Surface Mount

Applications

● Setpoint or offset trimming

● Sensor calibration

● Low-power portable instruments

● PC peripherals

● Data acquisition systems
