The MCP47CMD21T-E/UN is a single-channel, 12-bit, buffered voltage output digital-to-analogue converter (DAC) with MTP memory and an I²C compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It features 1 LSB integral nonlinearity (INL), low power consumption, and a fast 16 µs settling time. The device has an integrated MTP memory that can be written up to 32 times per specific register. It is suitable for consumer and industrial applications such as setpoint or offset trimming, sensor calibration, and motor control applications.

Product Attributes

Number of bits: 12

Number of digital-to-analogue converters: 1

Rise time: 4 µs

Output Type: Voltage - Buffered

Differential outputs: None

Data interface: I²C

Signal Source Type: External, Internal, Power

Voltage - Supply, Analogue: 1.8V ~ 5.5V

Voltage - Supply, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±1 (max), ±1 (max)

Construction: Resistor String DAC

Operating Temperature: -40°C ~ 125°C

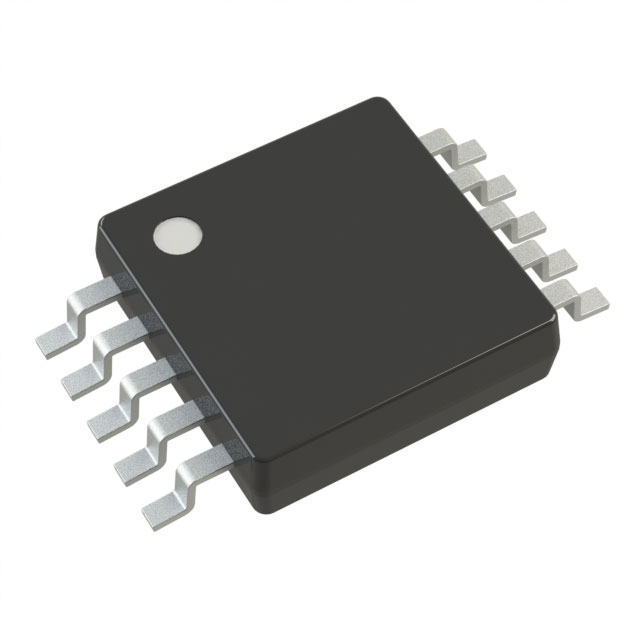

Package/Housing: 10-TFSOP, 10-MSOP (0.118" wide, 3.00 mm)

Supplier Device Package: 10-MSOP

Mounting Type: Surface Mount

Applications

● Setpoint or offset trimming

● Sensor calibration

● Low-power portable instruments

● PC peripherals

● Data acquisition systems
