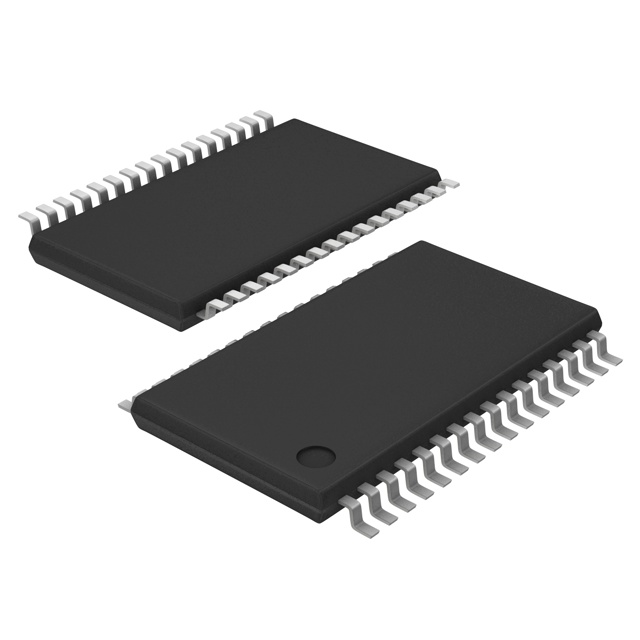

UJA1078ATW core System Basis Chip (SBC) replaces the basic discrete components commonly found in Electronic Control Units (ECU) with an integrated High-Speed CAN transceiver and two LIN transceivers, combined with a 250 mA voltage regulator for supplying a microcontroller; extendable with external PNP transistor for active power distribution.

Feature

Designed for automotive applications according to ISO 11898-2/5

±8 kV ESD protection Human Body Model (HBM) on the CAN/LIN bus pins and the wake-up pins

±6 kV ESD protection IEC 61000-4-2 on the CAN/LIN bus pins and the wake-up pins

±58 V short-circuit proof CAN/LIN bus pins

Battery and CAN/LIN bus pins are protected against transients in accordance with ISO 7637-3

V1 voltage regulator 5 V or 3.3 V with 250 mA output current capability

V1 can be combined with an external PNP transistor for better heat distribution over the PCB

V2 dedicated voltage regulator for CAN transceiver 5 V with 100 mA output current capability.

ISO 11898-2 and ISO 11898-5 compliant high-speed CAN transceiver

SPLIT output pin for stabilizing the recessive bus level

2 x LIN 2.1 and SAE J2602 compliant transceivers

Integrated LIN termination diode at pin DLIN

Wake-up via CAN, LIN or two local wake-up pins with wake-up source detection

Programmable watchdog with independent clock source

16-bit Serial Peripheral Interface (SPI) for configuration, control and diagnosis

Global enable output for controlling safety-critical hardware

Limp home output (LIMP)

Applications

Automotive

Body Control modules

Center stack modules

Climate control modules

Gear shift control

Seat control modules

Small frontlight and Headlight control modules

Sun roof modules
