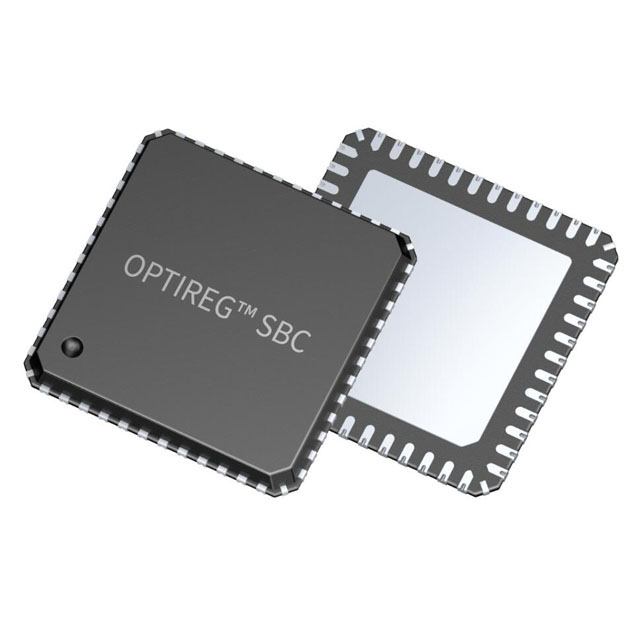

TLE9278-3BQX: OPTIREG™ SBC——Multi-CAN Power+ System Basis Chip (SBC), VQFN-48

Model: TLE9278-3BQX

Package: VQFN-48

Type: System Basis Chip

TLE9278-3BQX Product Features:

SMPS integrated switch with 5.0 V output voltage and up to 750 mA current supply (DC/DC buck).

DC/DC boost converter for low supply voltages with integrated switch, 6.7 V, 8 V, 10 V and 12 V

Low Dropout Regulator with External PNP Device, Output Voltage Configurable to 5.0 V, 3.3 V, 1.8 V, and 1.2 V, Protected for Off-Board Use

Extremely low quiescent current consumption in stop and sleep modes

Dedicated pin for I/O supply voltage selection

Four CAN transceivers compliant with CAN Flexible Data Rate (FD) ISO 11898-2: 2016 standard up to 5 Mbit/s

One general-purpose high-voltage wake-up input for voltage level monitoring, including wake-up function

Cyclic wake-up function via integrated timer

Reset output to ensure stable power supply to the MCU

Fault output for activation of external loads in case of detected system faults

Output voltage monitoring function at all output supply voltages

Fast battery voltage monitoring

16-bit serial peripheral interface (SPI)

Over- and short-circuit protection

Wide input voltage and temperature range

7 x 7 mm2 PG-VQFN-48 package

TLE9278-3BQX Applications:

Gateways

Body control modules

Driver assistance systems

Chassis control
