The MCP47CMD02 is a dual-channel, 8-bit, buffered voltage output digital-to-analog converter (DAC) with MTP memory and an I²C compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It offers 1 LSB integral nonlinearity (INL), low power consumption, and a fast setup time of 16µs. The device integrates MTP memory, and each specific register can be written up to 32 times.

MCP47CMD02T-E/MG Parameters:

Product Category: Digital-to-Analog Converter (DAC)

Number of digits: 8

Number of digital to analog converters: 2

Setup time: 4µs

Output type: voltage-buffer

Differential output: None

Data interface: I²C

Reference type: External, Internal, Power supply

Voltage - power supply, analog: 1.8V ~ 5.5V

Voltage - power supply, number: 1.8V ~ 5.5V

INL/DNL (LSB) : ±0.1 (Max), ±0.1 (Max)

Architecture: Resistor string DAC

Operating temperature: -40°C ~ 125°C

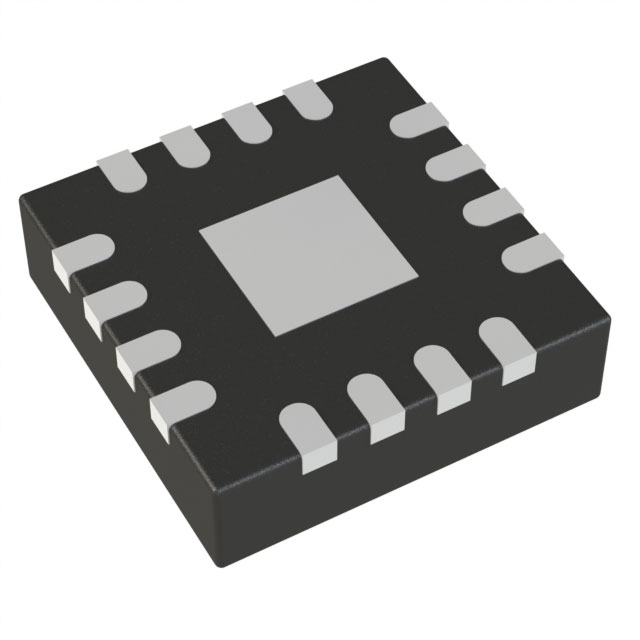

Package/housing: 16-VFQFN bare pad

Supplier Package: 16-QFN (3x3)

Mounting type: Surface mount type

Product Application:

• Set point or offset fine-tuning

• Sensor calibration

• Low power consumption portable instrumentation

• Personal computer peripherals

• Data acquisition system
