The MCP48CVD02T-E/MG is a dual, 8-bit, buffered voltage output digital-to-analog converter (DAC) with volatile memory and SPI-compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It features .1 LSB integral nonlinearity (INL), low power consumption, and a fast 16µs settling time. It is suitable for consumer and industrial applications such as setpoint or offset trimming, sensor calibration, and motor control applications.

Product Features

Number of bits: 8

Number of digital-to-analogue converters: 2

Assembly time: 4 µs

Output Type: Voltage - Buffered

Differential outputs: None

Data interface: SPI

Reference Signal Type: External, Internal, Power

Voltage - Supply, Analogue: 1.8V ~ 5.5V

Voltage - Supply, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±0.1 (max), ±0.1 (max)

Construction: Resistor String DAC

Operating Temperature: -40°C ~ 125°C

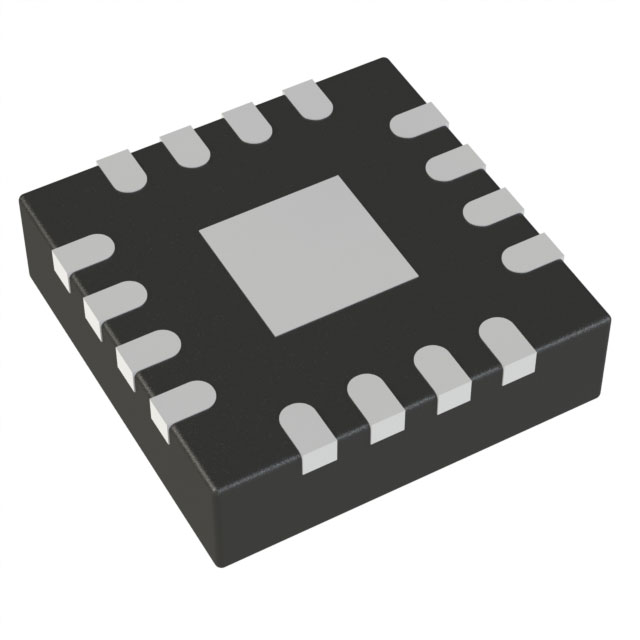

Package/Housing: 16-VFQFN with open area

Supplier Device Package: 16-QFN (3x3)

Mounting Type: Surface Mount

Applications

● Setpoint or offset trimming

● Sensor calibration

● Low-power portable instruments

● PC peripherals

● Data acquisition systems
