The MCP47CVB04 is a four-channel, 8-bit, buffered voltage output digital-to-analog converter (DAC) with volatile memory and an I²C compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It offers 1 LSB integral nonlinearity (INL), low power consumption, and 4µs fast setup time. It is suitable for consumer and industrial applications such as set point or offset adjustment, sensor calibration, motor control applications, etc.

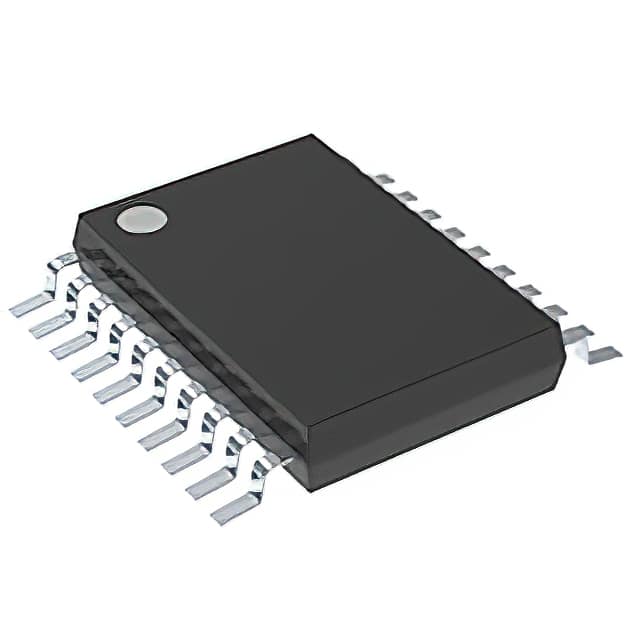

Device: MCP47CVB04T-20E/ST

Product Category: Digital-to-Analog Converter (DAC)

Number of digits: 8

Number of digital to analog converters: 4

Setup time: 6µs

Output type: voltage-buffer

Differential output: None

Data interface: I²C

Reference type: External, Internal, Power supply

Voltage - power supply, analog: -

Voltage - Power supply, number: -

INL/DNL (LSB) : -, ±1 (Max)

Structure: -

Operating temperature: -40°C ~ 125°C

Package/housing: 20-TSSOP (0.173", 4.40mm wide)

Supplier device package: 20-TSSOP

Mounting type: Surface mount type
