The MCP47CVB12-E/MF is a dual, 10-bit, buffered voltage output digital-to-analogue converter (DAC) with volatile memory and an I²C compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It features 1 LSB integral nonlinearity (INL), low power consumption, and a fast 16 µs settling time. It is suitable for consumer and industrial applications such as setpoint or offset trimming, sensor calibration, motor control applications, and more.

Specification

Product Category: Digital to Analogue Converters - DACs

Series: MCP47CXBXX

Resolution: 10-bit

Number of channels: 2 Channel

Stabilisation time: 16 us

Output type: Voltage

Interface type: 2-Wire, I2C

Analogue supply voltage: 1.8 V to 5.5 V

Digital supply voltage: 1.8 V to 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Mounting Style: SMD/SMT

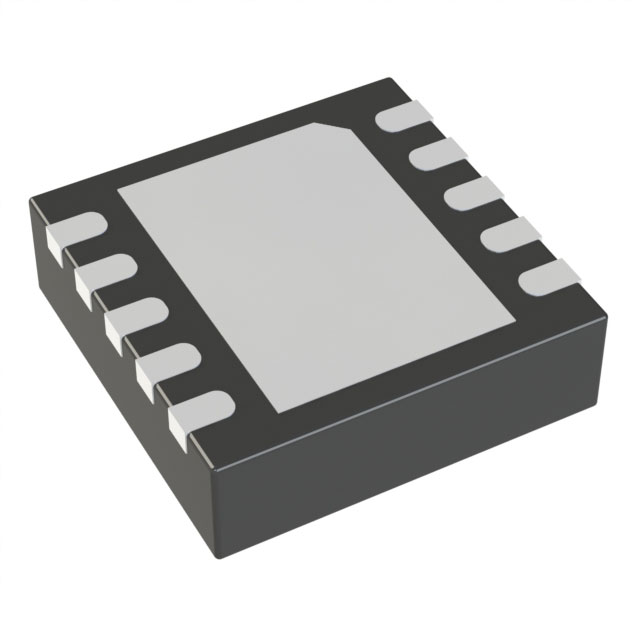

Package / Case: DFN-10

DNL - Differential Non-Linearity: +/- 0.25 LSB

Gain error: 1 %/FSR

INL - Integral non-linearity: +/- 0.25 LSB

Number of Converters: 2 Converter

Operating supply current: 850 uA

Pd-Power dissipation: 400 mW

Product Type: DACs - Digital to Analog Converters

Reference type: External

Reference Voltage: 5.5 V

Shutdown: No Shutdown

Factory Package Quantity: 120

Sub Category: Data Converter ICs

Supply Voltage-Max: 5.5 V

Supply Voltage - Min: 2.7 V

THD - Total Harmonic Distortion: - 73 dB

Type: Volatile Memory
