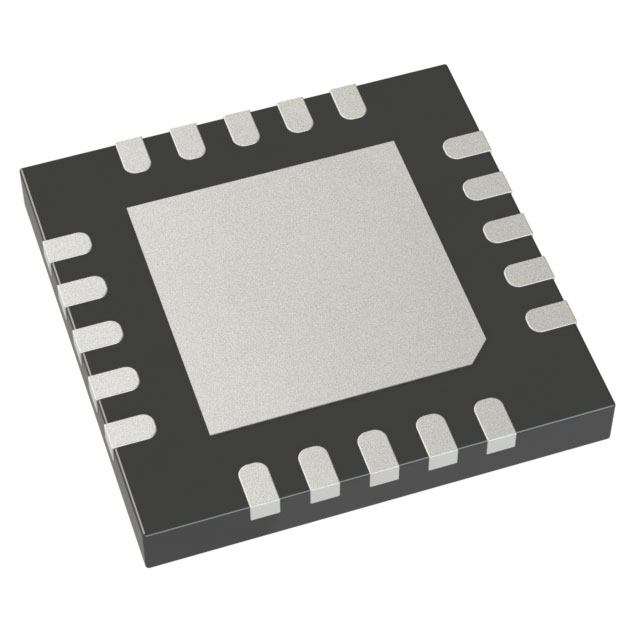

The MCP47CMB28-E/ML is an eight-channel, 12-bit, buffered voltage output digital-to-analogue converter (DAC) with MTP memory and an I²C compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. It features 1 LSB integral nonlinearity (INL), low power consumption, and a fast settling time of 4 µs. The device has an integrated MTP memory that can be written up to 32 times per specific register. It is suitable for consumer and industrial applications such as setpoint or offset trimming, sensor calibration, and motor control applications.

Product Attributes

Number of bits: 12

Number of digital-to-analogue converters: 8

Build time: 16µs (standard)

Output Type: Voltage - Buffered

Differential Output: None

Data Interface: I²C

Reference Type: External, Internal, Power

Voltage - Powered, Analogue: 1.8V ~ 5.5V

Voltage - Powered, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): -, ±1 (max)

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C

Package/Housing : 20-VFQFN Exposed Pad

Supplier Device Package: 20-QFN (4x4)
