The LPC54S016JBD100E enables the continued growth of the connected smart world with new feature integration and advanced security features. Featuring the Arm® Cortex®-M4 core, it offers larger SRAM up to 360KB, quad SPI Flash interfaces, Ethernet support and TFT interfaces, Ethernet support, a TFT LCD controller, and two CAN FD modules. At the same time, Cortex-M4 strikes the right balance between feature integration and power efficiency.

Product Attributes

Core Processor: ARM® Cortex®-M4

Core specification: 32-bit single core.

Speed: 180 MHz

Connectivity: CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, Smart Card, SPI, SPIFI, UART/USART, USB

Peripherals: undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/O 64

Programme memory type: No ROM

RAM capacity: 360K x 8

Supply Voltage (Vcc/Vdd) 1.71V ~ 3.6V

Data Converter: A/D 12x12b

Oscillator Type: Built-in

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

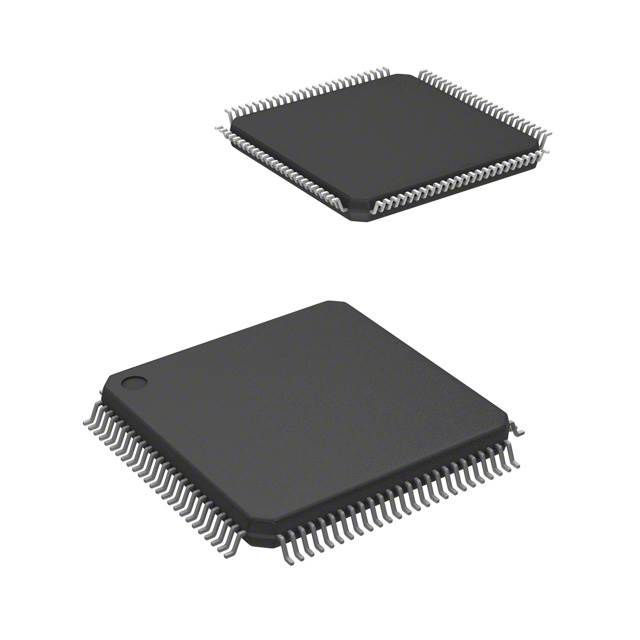

Package/case: 100-LQFP

Delivery incl. 100-LQFP (14x14)

APPLICATIONS

● Building control and automation

● Diagnostic equipment

● Multi-node/multi-protocol communication hubs

● HMI/UI applications

● Data collectors, infotainment/navigation

● Telematics/fleet management
