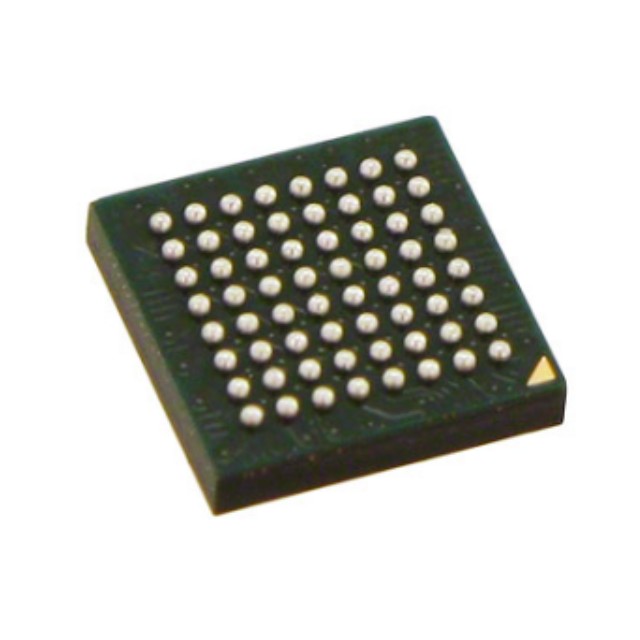

MKL27Z256VMP4 The Kinetis® KL2x is a family of ultra-low power MCUs that adds a full-speed USB 2.0 OTG controller or a full-speed crystal-free USB 2.0 device controller to the Kinetis KL1x family.

Features

Ultra Low Power

New generation 32-bit Cortex-M0+ core: twice the CoreMark/mA power efficiency score compared to the closest 8/16-bit architecture

Single-cycle fast I/O access port facilitates bit banging and software protocol emulation, preserving the "experience" of an 8-bit device.

Multiple flexible low-power modes, including a new computational clocking option that reduces dynamic power consumption by placing external settings in asynchronous stop mode

LPUART, SPI, I²C, FlexIO, ADC, DAC, LP Timer and DMA support low-power mode operation without waking up the core

Memory

Up to 512KB Flash, up to 128KB SRAM

Security circuitry prevents unauthorised access to RAM and Flash contents

32 KB ROM and built-in bootloader to simplify MCU programming and support easy flash memory upgrades

Performance

Cortex-M0+ core with 72MHz/96MHz core frequency over the full operating voltage and temperature range (-40ºC to +105ºC)

Bit manipulation engine for improved bit processing in peripheral modules

Thumb instruction set combines high code density with 32-bit performance

Up to 8 channels of DMA for peripherals and memory for lower CPU load and faster system throughput

Clock-independent COPs prevent clock skew or runaway code for fail-safe applications

Mixed Signal

16-bit ADC with configurable resolution, sample time and conversion speed/power

Built-in temperature sensor

High-speed comparator with built-in 6-bit DAC

12-bit DAC with DMA support

1.2 V and 2.1 V reference voltage (Vref)

Timing and control

Two 6-channel and one 2-channel 16-bit low-power timer PWM modules with DMA support

Two 32-bit cycle interrupt timers to provide a time base for RTOS task schedulers or a trigger source for ADC conversions

Low-power timers capable of operating in all power modes except VLLS0

Real-time real-time clock with calendar

Human-machine interface

Capacitive touch sensor interface supports up to 16 external electrodes and DMA data transfers

General-purpose IOs with pin interrupt support, DMA request function and other pin control options

Connectivity and Communication

USB 2.0 OTG (full-speed) with integrated USB low-voltage regulator provides 120 mA, 3.3 V off-chip power to power external components with 5 V inputs; or USB 2.0 device (full-speed) with clock recovery, eliminating the need for an external crystal

FlexIO supports generic or custom serial peripheral emulation

High-precision internal reference clock to support high-performance communications

3 DMA-enabled I2C up to 1 Mbps, SMBus V2 compatible

3 LPUARTs with DMA support

3 SPI with DMA support

I²S module for audio applications

FlexIO modules support a wide range of protocols including UART, I²C, SPI, I²S, PWM waveform generation

Smart card interface VMSIM (ISO7816-E)
