The LTC7841EUHE synchronous boost controller drives two N-channel power MOSFET stages in heterodyne. Multi-phase operation reduces input and output capacitor requirements and allows the use of smaller inductors than single-phase equivalents. Synchronous rectification improves efficiency, reduces power losses, and simplifies thermal requirements for high-power boost applications. The output voltage can be regulated to up to 60V with 0.2% resolution via a PMBus-compatible serial interface. The serial interface can also be used to read back fault status, input/output currents, input/output voltages and temperature. System configuration and monitoring is supported by the LTpowerPlay® development system.

Product Properties

Output Type: Transistor Driver

Function: Boost

Output Configuration: Positive

Topology: Boost

Number of Outputs: 1

Output Stages: 12

Voltage - Supply (Vcc/Vdd): 4.5V ~ 60V

Frequency - Switching: 75kHz ~ 850kHz

Duty Cycle (Maximum): 96%

Synchronous Rectifier: Yes

Clock Synchronisation: Yes

Serial Interface: I²C, PMBus, SMBus

Control Characteristics: Current Limit, Power Good

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

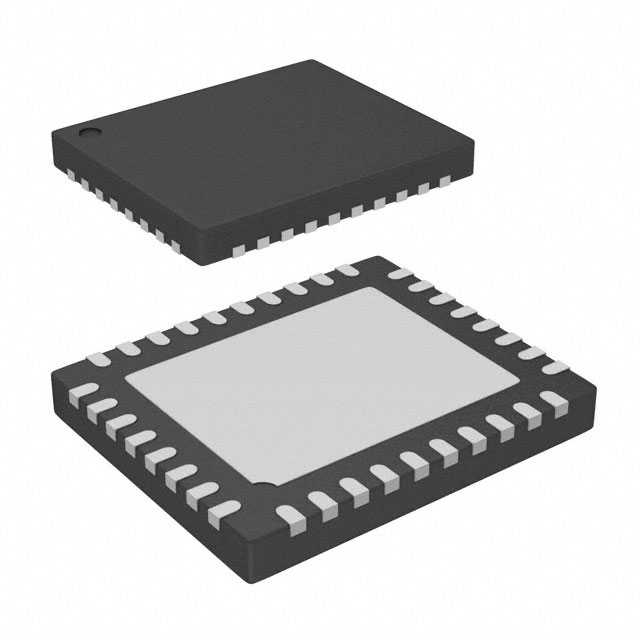

Package/Shell: 36-WFQFN Exposed Pad

Supplier Device Package: 36-QFN (5x6)

Applications

● Automotive Systems

● Medical

● Industrial
