The LTC7813HUH synchronous boost-buck controllers are high performance 38V and 60V DC/DC switching regulator controllers with low quiescent current. The controllers are used to drive N-channel power MOSFET stages. The design contains separate boost and buck controllers. These independent boost and buck controllers regulate two separate outputs. When cascaded, these independent boost and buck controllers regulate the output voltage from the input voltage, which can be higher, lower, or equal to the output voltage.

Product Properties

Output Type: Transistor Driver

Function: Boost, Buck

Output Configuration: Positive

Topology: Buck, Boost

Number of Outputs: 2

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 4.5V ~ 60V

Frequency - Switching: 105kHz ~ 835kHz, 350kHz ~ 535kHz

Duty Cycle (Maximum): 96%, 99

Synchronous Rectifier: Yes

Clock Synchronisation: No

Control Characteristics: Enable, Frequency Control, Power Good, Soft Start, Tracking

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

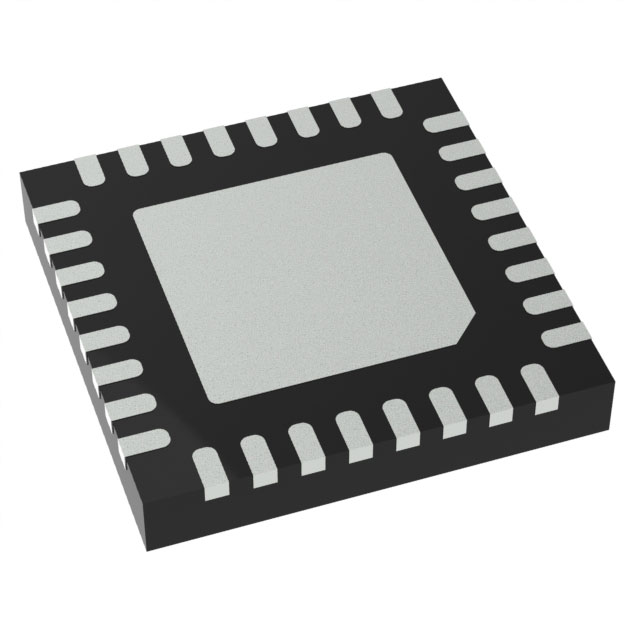

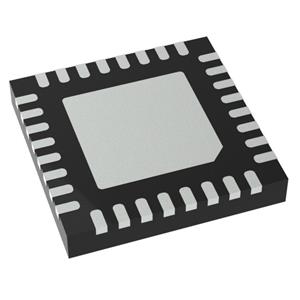

Package/Shell: 32-WFQFN Exposed Pad

Supplier Device Package: 32-QFN (5x5)

Applications

● Automotive and Industrial Power Systems

● High Power Battery Powered Systems
