Service Telephone:86-755-83294757
Trade Name:LTC7815EUHF
Data Manual:LTC7815EUHF.pdf
Brand:ADI
Particular Year:23+

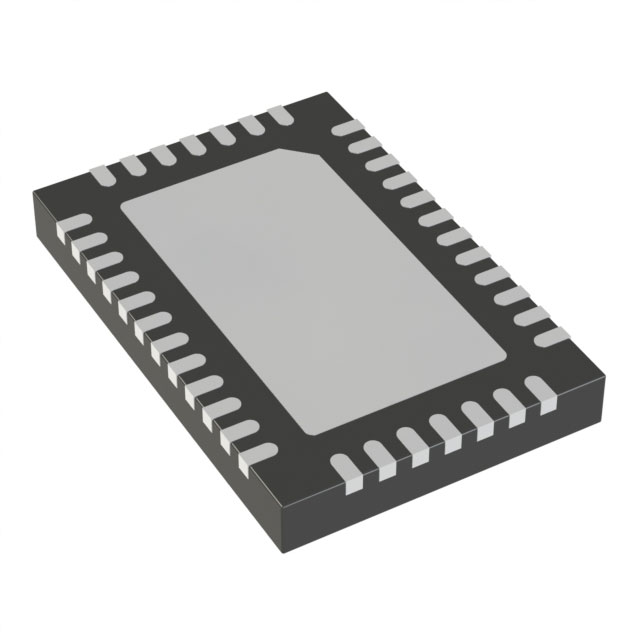

Package:38-QFN
Delivery Date:New and Original
Stock: 1000pcs
The LTC7815EUHF is a high performance triple output (buck/buck/boost) synchronous DC/DC switching regulator that drives all N-channel power MOSFET stages. The constant-frequency current-mode architecture allows for phase-locked switching up to 2.25 MHz and is available over a wide input supply range of 4.5V to 38V. When the boost converter output or another auxiliary supply is biased, it can operate from an input supply as low as 2.5V after startup.
Product Characteristics
Output Type: Transistor Driver
Function Boost, Boost/Buck
Output Configuration Positive
Topology Buck, Step-Down, Step-Up
Number of Outputs 3
Number of Output Stages: 2 2
Voltage - Supply (Vcc/Vdd): 4.5V ~ 38V
Frequency - Switching: 320kHz ~ 2.25MHz
Duty Cycle (Max) 100%
Synchronous Rectifier Yes
Clock Synchronisation: Yes No
Control Characteristics Power Good, Soft Start, Tracking
Operating Temperature 0°C ~ 85°C (TJ)
Mounting Type Surface Mount
Package/Shell: 38-WFQFN Exposed Pad
Supplier Device Package: 38-QFN (5x7)
Applications
● Automotive Normally Open and Start-Stop Systems
● Battery Operated Digital Devices
● Distributed DC Power Systems
● Multi-output buck-boost applications
Model
Brand
Package
Quantity
Describe
ADI
MSOP-10
3000
Wide input range, No RSENSE™ Wide input range, positive to negative DC/DC controller
ADI
38-TFSOP
2000
Bidirectional Synchronous Buck/Boost Controller with Reverse Supply, Reverse Current
ADI
38-TFSOP
2000
Bidirectional Synchronous Buck/Boost Controller with Reverse Supply, Reverse Current
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
