The ADG5436FBRUZ is an analogue multiplexer with two independently selectable single-pole, double-throw (SPDT) switches built in. The EN input is used to disable the switches. Both switches are open-first, close-first type, suitable for multiplexer applications. When on, each channel conducts equally in both directions and the input signal range can be extended to the supply voltage range. The digital inputs are compatible with the 3 V logic inputs over the entire operating voltage range.

Product Attributes

Switching Circuit: SPDT

Multiplexer/Demultiplexer Circuit: 2:1

Number of circuits: 2

On-resistance (max): 11.5 ohms

Channel-to-channel match (ΔRon): 150 milliohms

Voltage - Supply, Single (V+): 8V ~ 44V

Voltage - Supply, Dual (V±): ±5V ~ 22V

Switching Time (Ton, Toff) (Max): 535ns, 205ns

-3db Bandwidth: 171MHz

Charge Injection: -737pC

Channel Capacitance (CS(off), CD(off)): 11pF, 23pF

Current - Leakage (IS(off)) (max): 500pA

Crosstalk: -73dB @ 1MHz

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

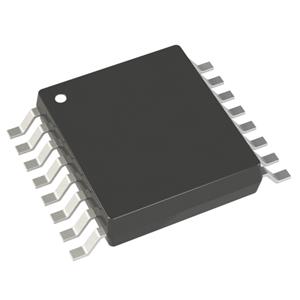

Package/Case: 16-TSSOP (0.173", 4.40mm wide)

Supplier Device Package: 16-TSSOP

Applications

● Analogue input/output modules

● Process control/distributed control systems

● Data acquisition

● Instrumentation

● Avionics

● Automatic test equipment

● Communication Systems

● Relay Replacement Solutions
