The ADG5243FBRUZ includes three independently selectable single-pole, double-throw (SPDT) switches. All channels have a break-before-connect switching action that prevents momentary short circuits when switching channels.The EN input enables or disables the device. When disabled, all channels are off. When enabled, each switch is equally conductive in both directions. The input signal range extends to the power supply. The main supply voltage defines the on-resistance curve, while the secondary supply voltage defines the voltage level in case of overvoltage.

Product Characteristics

Switching Circuit: SPDT

Multiplexer/Demultiplexer Circuit: 2:1

Number of circuits 3

Switching Resistance (Max): 335 Ohm 335 Ohm

Channel to Channel Matching (ΔRon): 3 Ohms

Supply Voltage, Single (V+): 8V ~ 44V

Supply Voltage, Dual (V±): ±5V ~ 22V

Switching Time (Ton, Toff) (Max): 215ns, 85ns 215ns, 85ns

Bandwidth -3db: 350 MHz

Charge Injection: -1.4pC

Leakage Current (IS (Off)) (Max): 1nA 1nA

Crosstalk: -85dB @ 1MHz

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

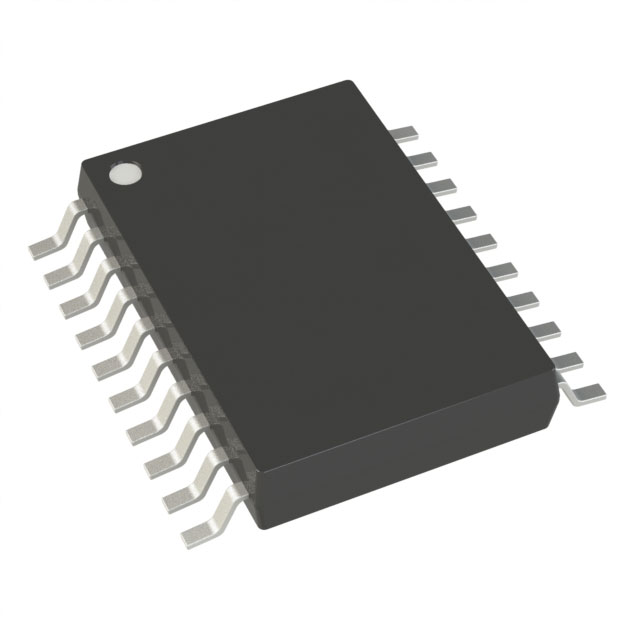

Package/Case: 20-TSSOP (0.173 inches, 4.40 mm wide)

Delivery Range: 20-TSSOP

Applications

● Analogue input/output modules

● Process control/distributed control systems

● Data acquisition

● Instrumentation

● Avionics

● Automatic test equipment

● Communication systems

● Relay replacement
