The ADG1236YCPZ is a monolithic CMOS device containing two independently selectable SPDT switches. It is designed using the iCMOS® process. iCMOS (Industrial CMOS) is a modular manufacturing process that combines a combination of high-voltage complementary metal-oxide-semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high-performance analogue integrated circuits. high-performance analogue integrated circuits operating at 33V. Unlike analogue ICs using the traditional CMOS process, iCMOS components can withstand high supply voltages while offering higher performance, lower power consumption and smaller package size.

Product Attributes

Switching Circuits: SPDT

Multiplexer/Demultiplexer Circuit: 2:1

Number of circuits: 2

On-resistance (max): 190 ohms

Channel to Channel Matching (ΔRon): 3.5 Ohms

Voltage - Supply, Single (V+): 12V

Voltage - Supply, Dual (V±): ±15V

Switching Time (Ton, Toff) (Max): 150ns, 90ns

-3db Bandwidth: 1GHz

Charge Injection: -1pC

Channel Capacitance (CS(off), CD(off)): 1.6pF

Current - Leakage (IS(off)) (max): 100pA

Crosstalk: -85dB @ 1MHz

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

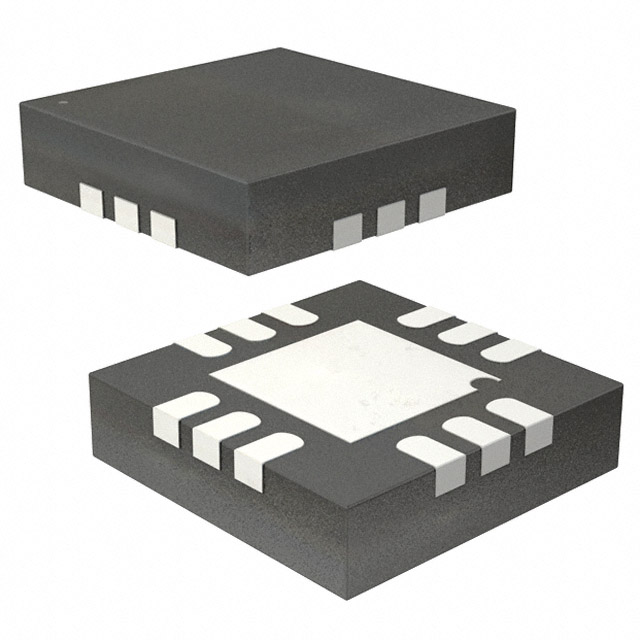

Package/Shell: 12-WFQFN Exposed Pad, CSP

Supplier Device Package: 12-LFCSP (3x3)

Applications

● Automated test equipment

● Data Acquisition Systems

● Battery powered systems

● Sample hold systems

● Audio/video signal routing

● Communication systems
