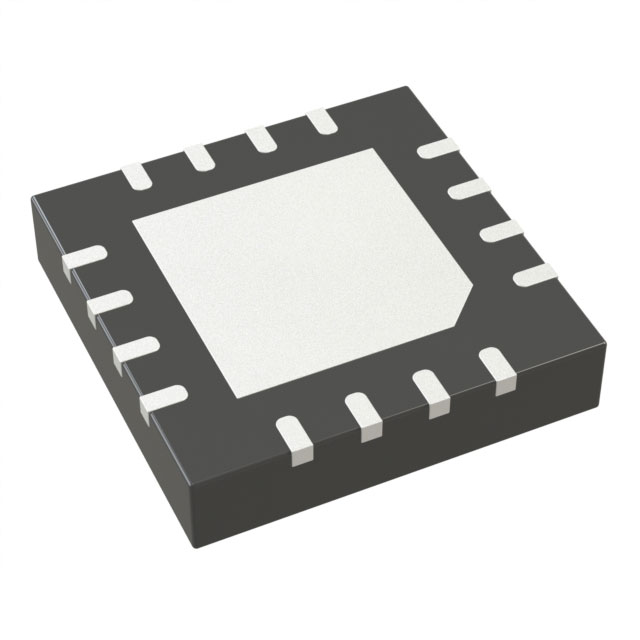

The ADG5413BCPZ has four independent single-pole, single-throw (SPST) switches built in. The switches are switched on when the associated control input is a logic 1. Two of the switches have digital control logic similar to that of the ADG5412, while the other two have the opposite control logic. When on, each switch conducts equally in both directions and the input signal range extends to the supply voltage range. In the OFF condition, a signal level equal to the supply voltage is blocked.

Product properties

Switching Circuits: SPST - Normally Open/Normally Closed

Multiplexer/Demultiplexer Circuit: 1:1

Number of circuits: 4

On-resistance (max): 10 ohms

Channel to Channel Matching (ΔRon): 350 milliohms

Voltage - Supply, Single (V+): 9V ~ 40V

Voltage - Supply, Dual (V±): ±9V ~ 22V

Switching Time (Ton, Toff) (Max): 187ns, 138ns

-3db Bandwidth: 160MHz

Charge Injection: 310pC

Channel Capacitance (CS(off), CD(off)): 17pF, 17pF

Current - Leakage (IS(off)) (max): 250pA

Crosstalk: -70dB @ 1MHz

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: 16-WQFN Exposed Pad, CSP

Supplier Device Package: 16-LFCSP-WQ (4x4)

Applications

● Relay replacement solutions

● Automated test equipment

● Data Acquisition

● Instrumentation

● Avionics

● Audio and Video Switches

● Communication systems
