The ADG1634LYCPZ is a single-chip industrial CMOS (iCMOS®) with four independently selectable single-pole, double-throw (SPDT) switches built-in. All channels are switched with an open-then-close switch to prevent transient short circuits when switching channels. An EN input is provided to enable or disable the device. When disabled, all channels are turned off. The switch is enabled via the logic 1 EN input, while the INx input defines the state of the SPDT switch.

Product Properties

Switching Circuit: SPDT

Multiplexer/Demultiplexer Circuit: 2:1

Number of circuits: 4

On-resistance (max): 4.6 ohms

Channel to Channel Matching (ΔRon): 120 milliohms

Voltage - Supply, Single (V+): 3.3V ~ 16V

Voltage - Supply, Dual (V±): ±3.3V ~ 8V

Switching Time (Ton, Toff) (Max): 154ns, 195ns

-3db Bandwidth: 77MHz

Charge Injection: -12.4pC

Channel Capacitance (CS(off), CD(off)): 19pF, 32pF

Current - Leakage (IS(off)) (max): 150pA

Crosstalk: -64dB @ 1MHz

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

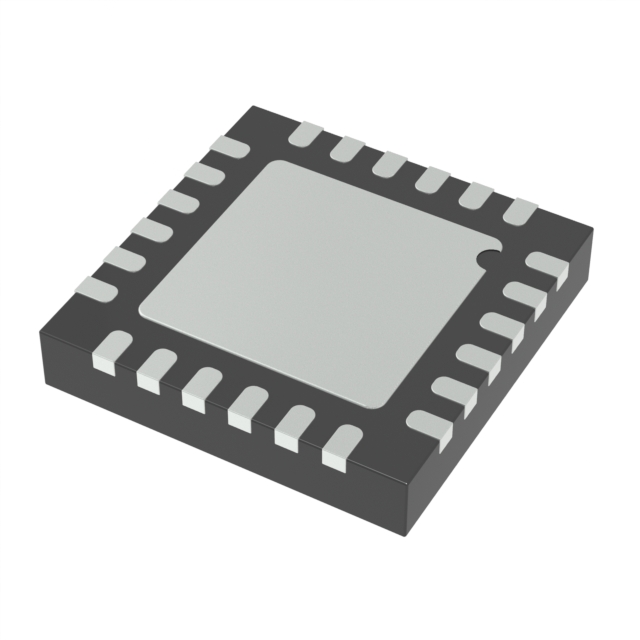

Package/Shell: 24-VFQFN Exposed Pad, CSP

Supplier Device Package: 24-LFCSP (4x4)

Applications

● Communication Systems

● Medical systems

● Audio Signal Routing

● Video signal routing

● Automatic test equipment

● Data Acquisition Systems

● Battery powered systems

● FPGA and microcontroller systems

● Sample-and-hold systems

● Relay alternatives
