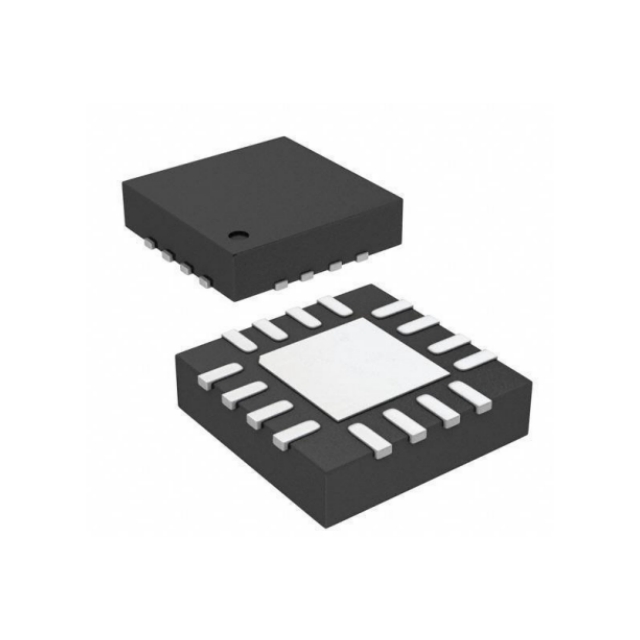

The LT8722AV is a high performance, high efficiency, single-chip full-bridge DC/DC converter. One side of the full bridge is driven by a pulse-width modulated (PWM) buck power stage, while the other side is driven by a linear power stage. It can deliver up to ±54W1 to its load while requiring only a single inductor. An integrated 25-bit digital-to-analogue converter (DAC) is used to control the device output voltage. Two additional 9-bit DACs control positive and negative output current limiting.

Features

● 25-bit digital output voltage control

● Wide input voltage range: 3.1V to 15V

● ±4A output current

● High output power: up to 54W1

● High efficiency at high frequencies

● 92.6% efficiency at 4A, 15VIN, fSW = 3MHz

● SPI interface allows the user to:

● Set the output regulation voltage

● Set output current limit

● Check kit status

● Enable/disable outputs

Applications

● Driving thermoelectric coolers (TECs) to provide precise control

● Light-guide transport subassembly (TOSA) cooling

● Bait doped fibre amplifier (EDFA) temperature regulation

● Photonic integrated circuit (PIC) cooling

● LiDAR mirror control

● Motor control
