ADGM1121BCCZ is a wideband, double-pole, double-throw switch, fabricated using microelectromechanical system switch technology.

Feature

DC to 18 GHz frequency range

High bit rate capability up to 64 Gbps

Low insertion loss:

0.5 dB (typical) at 8 GHz

1.0 dB (typical) at 16 GHz

High Input IIP3: 73 dBm (typical)

High RF power handling: 33 dBm (maximum)

On-resistance: 1.9 Ω (typical)

High DC current handling: 200 mA

High switch cycle count: 100 million cycles (minimum)

Fast switching time: 200 μs TON (typical)

Integrated 3.3 V driver for simple control with parallel interface and SPI

Space-saving integrated passive including decoupling and shunt resistors

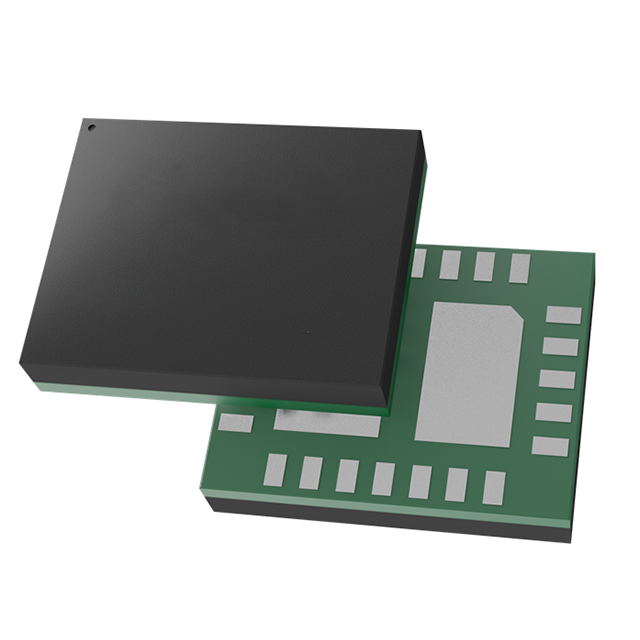

Small 5 mm × 4 mm × 1 mm, 24-lead plastic package

Temperature range: −40°C to +85°C

Applications

ATE load and probe boards

DC with high speed loopback testing

High speed SerDes, PICe Gen4/5, USB4, PAM4

Relay replacements

Reconfigurable filters/attenuators

Military and microwave radios

Cellular infrastructure: 5G mm wave
