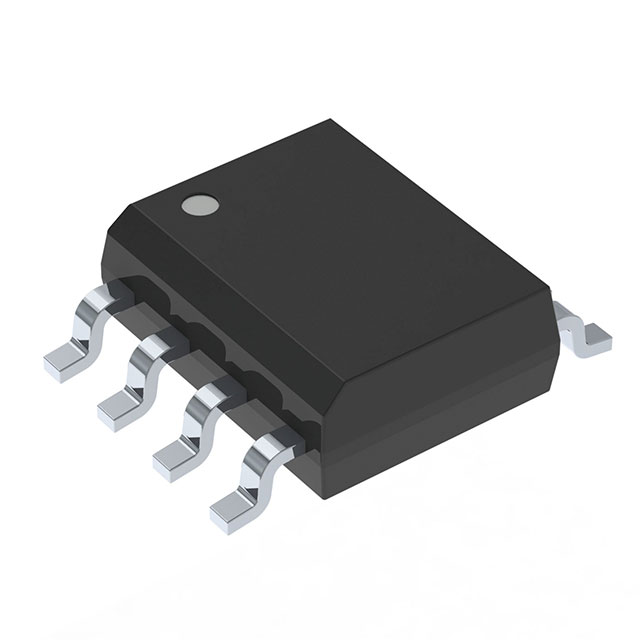

2ED28073J06F is a high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels.

Feature

Negative VS transient immunity of 70 V, dV/dt immune

Lower di/dt gate driver for better noise immunity

Floating channel designed for bootstrap operation

Operating voltages (VS node) upto + 600V

Maximum bootstrap voltage (VB node) of + 625 V

Integrated bootstrap diode

Integrated shoot-through protection with built. in dead time

Integrated short pulse / noise rejection filter on input

Independent under voltage lockout for both high and low side

Schmitt trigger inputs with hysteresis

3.3V, 5 V and 15 V input logic compatible

Maximum supply voltage of 25 V

Outputs in phase with inputs

Suitable for both trapezoidal and sinusoidal motor control

Available in small footprint DSO-8

RoHS compliant

Applications

Refrigeration Compressors

Air Conditioner fans

Washing Machines and dishwasher pumps

General Purpose Inverters

Micro/Mini Inverter Drives
