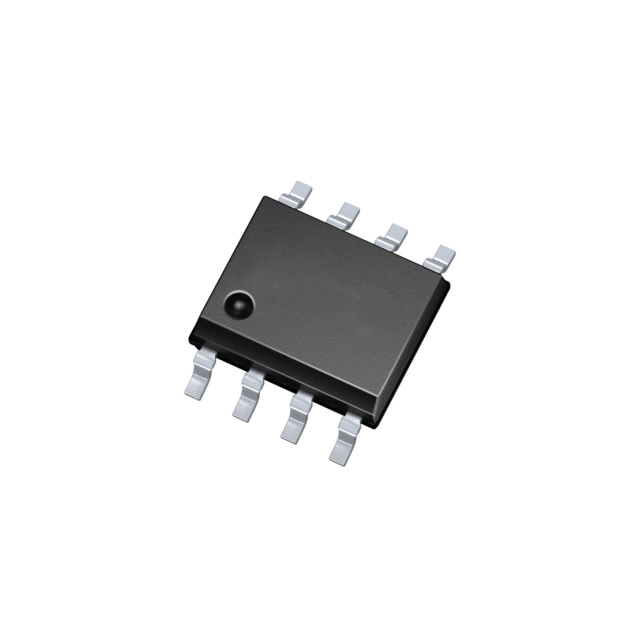

2ED2304S06F is a 650-V half-bridge gate driver. Its thin-film-SOI technology provides excellent ruggedness and noise immunity.

Feature

Infineon thin-film-SOI-technology

Fully operational to +650 V

Floating channel designed for bootstrap operation

Output source/sink current capability +0.36 A/-0.7 A

Integrated Ultra-fast, low RDS(ON) Bootstrap Diode

Tolerant to negative transient voltage up to -100 V(Pulse width is up 300 ns) given by SOI-technology

10 ns typ., 60 ns max. propagation delay matching

dV/dt immune ±50 V

Gate drive supply range from 10 V to 20 V

Undervoltage lockout for both channels

Integrated dead-time with interlocking function

3.3 V, 5 V and 15 V input logic compatible

RoHS compliant

Applications

Motor drives, General purpose inverters

Refrigeration compressors

Half-bridge and full-bridge converters in offline AC-DC power supplies for telecom and lighting
