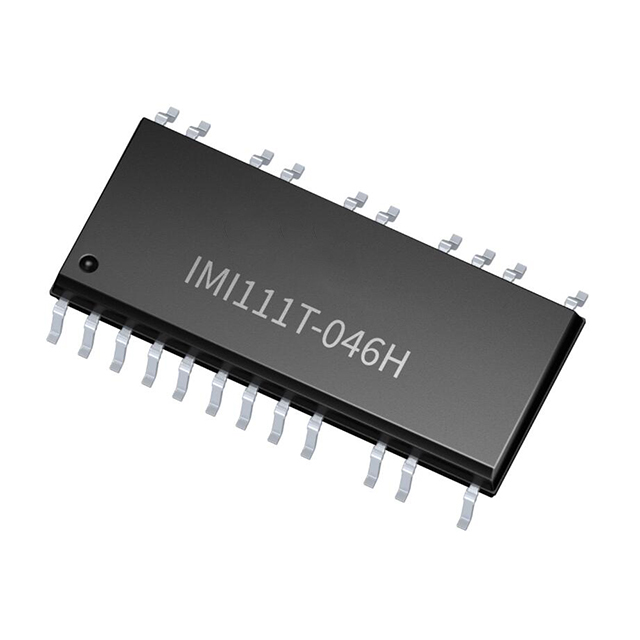

IMI111T-046H belong to IMI110 series of iMOTION™ IPMs. IMI111T is a family of fully-integrated, turnkey high-voltage motor drive modules designed for high-performance, high-efficiency PMSM/BLDC motor drive applications such as fans, pumps and small compressors.

Product Features

Motion Control Engine (MCE) as a ready-to-use control solution for variable speed drives

Integrated script engine for application control customization

Integrated drive and system protection features

Field oriented control (FOC) for permanent magnet synchronous motor (PMSM)

Flexible space vector PWM for sinusoidal voltage control

Current sensing via single shunt

Sensorless operation

Integrated analog comparators for over-current protection

Built-in temperature sensor

Flexible control input options: UART or analog signal

Certified drive safety functions according to IEC/UL 60730-1 ‘Class B’

High voltage three phase gate driver with 600 V blocking voltage

15 V supply voltage for gate driver

Integrated boot strap diode structure

Isolation 1500 VRMS 1 min

3.3 V or 5.0 V controller supply voltage

2 different IGBT options: 2 A/600 V and 4 A/600 V

Optimized dv/dt for loss and EMI trade offs

Very compact DSO-22 package

Potential applications

Small and major home appliances

Fans, Pumps, Compressors

General purpose variable speed drives
