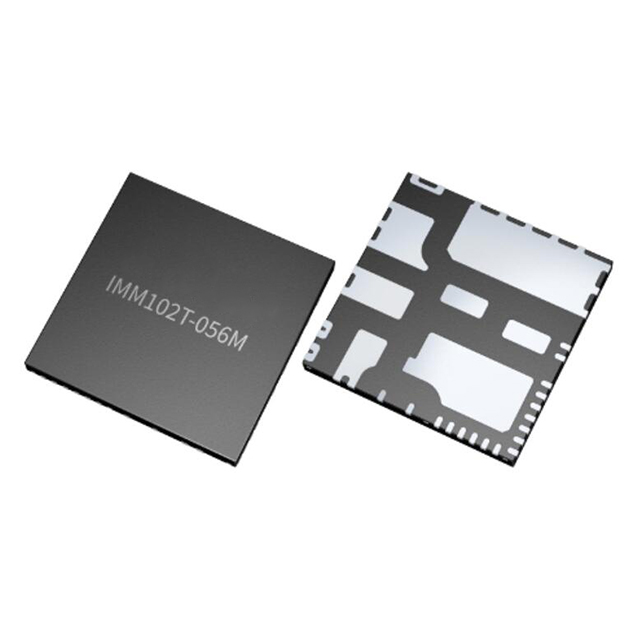

IMM102T-056M is a fully-integrated, turnkey high-voltage motor drive modules designed for high-performance, high-efficiency PMSM/BLDC motor drive applications such as fans, pumps and small compressors.

Summary of Features

Highly efficient 3-phase motor control

Flexible sensing options (single/leg shunt, sensorless, hall)

Storage of motor parameters

PFC control integrated

Multiple protections features

Benefits

Fastest time to market

No software development required

 No inverter hardware design needed

Easy motor parametrization and tuning

Lowest BOM cost

Reduced BOM count and PCB size

Sensorless FOC algorithm

No need for additional PFC controller

Additional application flexibility via scripting

Smallest PCB footprint for 3-phase inverter

PQFN 12x12mm

No need for heatsink up to 80W

Potential applications

Small and major home appliances

Fans, Pumps, Compressors

General purpose variable speed drives
