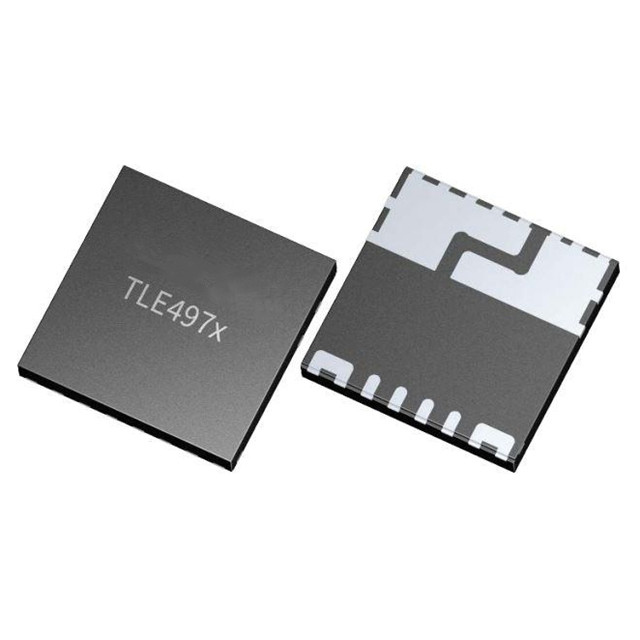

The TLE4971-A025T5-U-E0001 is a high-precision miniature coreless magnetic current sensor for AC and DC measurements with analog interfaces and two fast overcurrent detection outputs. Infineon's proven and reliable single-chip Hall technology enables highly accurate, highly linear current measurements up to ±120A at full scale. The sensor is equipped with internal self-diagnosis function. Typical applications are onboard chargers as well as any type of drive. The differential measurement principle can achieve good stray field suppression when operating in harsh environments.

specification

Used for measurement: AC/DC

Sensor type: Current sensor

Current - Detection: 25A

Number of channels: 1

Output: ratio, voltage

Sensitivity: 48mV/A

Frequency: 210kHz

Linearity: -

Accuracy: -

Voltage - Power supply: 3.1V ~ 3.5V

Response time: 700ns

Current - Power supply (Max.) : 25mA

Operating temperature: -40°C ~ 125°C

Polarization: bidirectional

Mounting type: Surface mount type

Package/housing: 8-PowerTDFN

Supplier device package: PG-TISON-8-6
