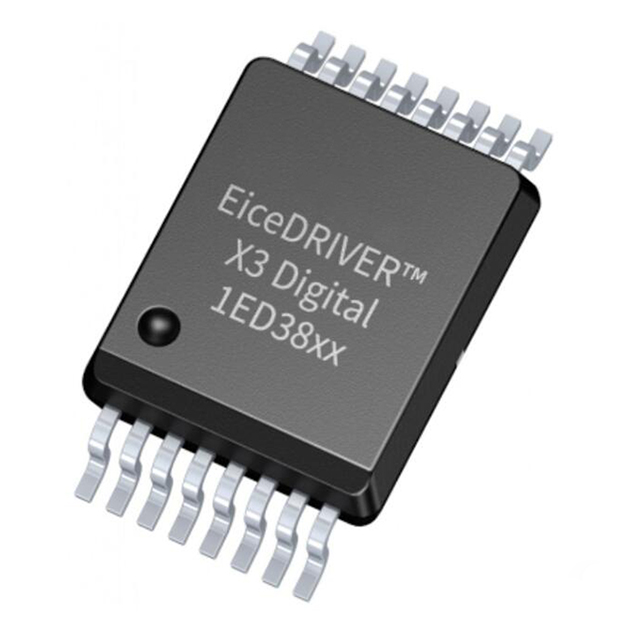

1ED3830MU12M is EiceDRIVER™ Enhanced 5.7 kV, 3 A single-channel highly flexible isolated gate driver with ±3 A typical sinking and sourcing peak output current in small space-saving DSO-16 fine pitch wide-body package with large creepage distance (>8 mm) for IGBTs, MOSFETs and SiC MOSFETs.

Product Features

650 V, 1200 V, 1700 V, 2300 V IGBTs, SiC, and Si MOSFETs

40 V absolute maximum output supply voltage

±3 A, ±6 A, and ±9 A typical sinking and sourcing peak output current

Separate source and sink outputs for hard switching or optional two-level turn-off and with active Miller clamp

I2C bus for parameter configuration and status register readout

Precise, adjustable, and temperature compensated VCEsat detection (DESAT) with fault output

Adjustable IGBT soft turn-off after desaturation detection

Operation at high ambient temperature up to 125 °C with over temperature shut down at 160 °C (±10 °C)

Tight IC-to-IC propagation delay matching (tPDD,max = 30 ns)

High common-mode transient immunity CMTI = 200 kV/µs

Small space-saving DSO-16 fine-pitch package with large creepage distance (>8 mm)

Potential applications

Industrial motor drives - compact, standard, premium, servo drives

Solar inverters

UPS systems

Welding

Commercial and agricultural vehicles (CAV)

Commercial air-conditioning (CAC)

High-voltage isolated DC-DC converters

Isolated switch mode power supplies (SMPS)
