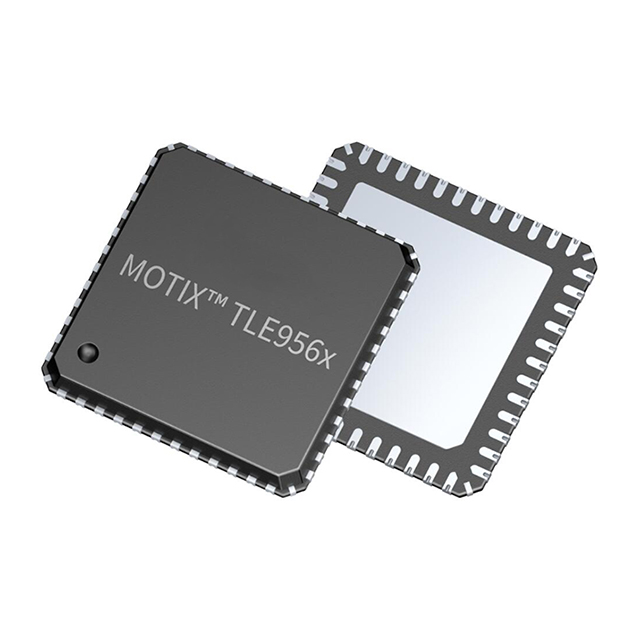

TLE9562-3QXJ is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges and support features in an exposed pad PG-VQFN-48 power package. The device is designed for various motor control automotive applications.

Product Features

Low-drop voltage regulator 5 V, 250 mA for main supply

Four half-bridge gate drivers for external N-channel MOSFETs

Control of reverse battery protection MOSFET

High-speed CAN transceiver supporting CAN FD communication up to 5Mbit/s according to ISO11898-2:2016 including selective wake-up functionality via CAN partial networking and CAN FD tolerant mode

LIN Transceivers LIN2.2/SAE J2602 with programmable TXD time-out feature and LIN flash mode

Fail Outputs for fail-safe signalization

Configurable wake-up sources

Four high-side outputs 7 Ω typ.

Two PWM inputs

– High-side and low-side PWM capable

– Active free-wheeling

– Up to 25 kHz PWM frequency

32 bit serial peripheral interface (SPI) with cyclic redundancy check (CRC)

Potential applications

Door module

Power lift gate

Power sliding doors

Seat control module

Seatbelt pretension

Steering column lock

Sunroof module
