The MOTIX™ TLE7209-3R is an intelligent full H-Bridge, designed for the control of DC and stepper motors in safety critical applications

Product Description

TLE7209-3R is an intelligent full H-Bridge, designed for the control of DC and stepper motors in safety critical applications and under extreme environmental conditions. The device is configurable by the DMS pin. When grounded, the device gives diagnostic information via a simple error flag.

Product Features

Operating supply voltage 5 V to 28 V

Typical RDSon = 150 mΩ for each output transistor (at 25 °C)

Continuous DC load current 5 A (TC < 100 °C)

Output current limitation at typ. 6.6 A ± 1.1 A

Short circuit shut-down for output currents over 8 A

Logic- inputs TTL/CMOS-compatible

Output switching frequency up to 30 kHz

Rise and fall times optimized for 0.5-2 kHz

Over-temperature protection

Short circuit protection

Undervoltage disable function

Diagnostic by SPI or Status-Flag (configurable)

Enable and Disable inputs

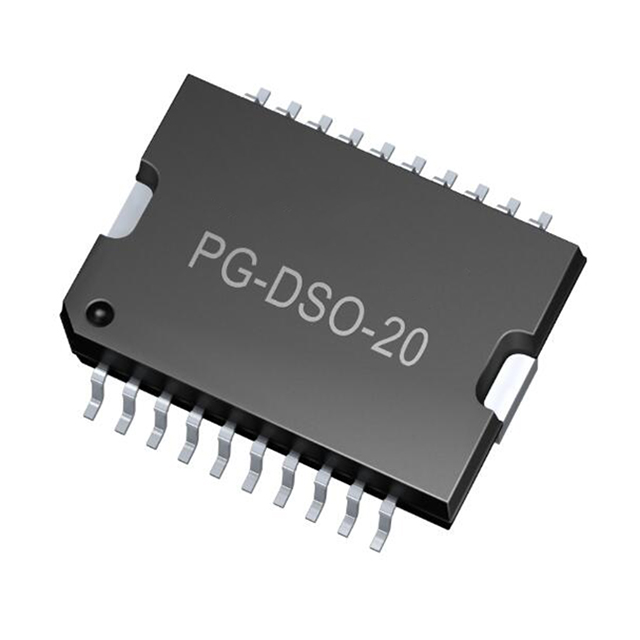

PG-DSO-20-65 power package
