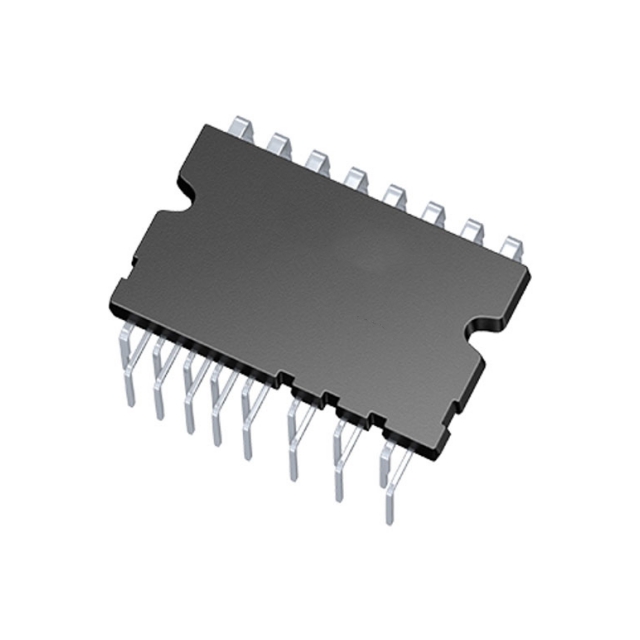

The IM523M6A offers the opportunity to integrate a variety of power and control components to improve reliability and optimise PCB size and system cost. It is designed for controlling three-phase motors in variable speed drives. The package concept is particularly suitable for power supply applications, which require good thermal conduction and electrical isolation, as well as low cost. These applications not only require good thermal conduction and electrical isolation, but also less EMI and overload protection. To provide outstanding electrical performance Infineon's leading RC-Drives IGBTs are combined with optimised SOI gate drivers.

Product Properties

Motor Type - Stepper: Multiphase

Motor Type - AC, DC: Brushless DC (BLDC)

Features: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (3)

Technology: IGBT

Application: Appliance

Current - Output: 20A

Voltage - Supply: 13V ~ 17.5V

Voltage - Load: 0V ~ 450V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Through Hole

Package/Housing: 24-PowerDIP Module (1.028", 26.10mm)

Supplier Device Package: 24-DIP
