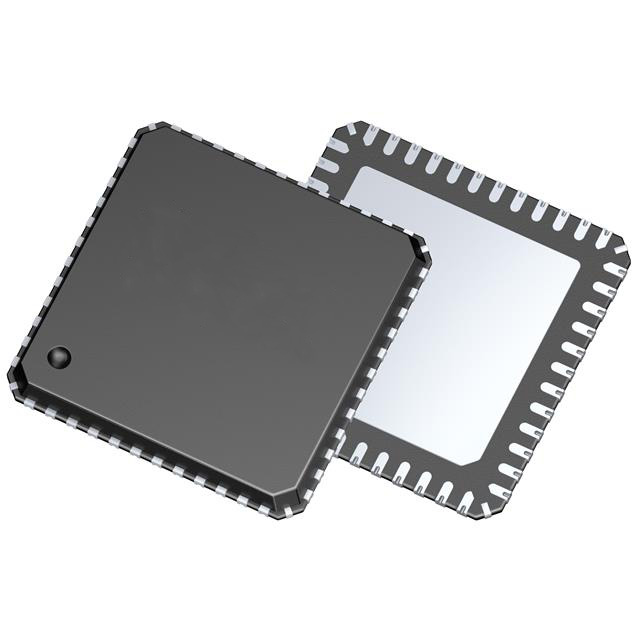

TLE95633QXJ is a multifunctional system IC with integrated power supply, communication interfaces,multiple half-bridges and support features in an exposed pad PG-VQFN-48 power package.

Features

Low-drop voltage regulator 5 V, 250 mA for main supply

Four half-bridge gate drivers for external N-channel MOSFETs

Adaptive MOSFET gate control

Regulation of the MOSFET switching time

Reduced switching losses in PWM mode

High efficient constant gate charge

Control of reverse battery protection MOSFET

Fail Outputs for fail-safe signalization

Configurable wake-up sources

Four high-side outputs 7 Ω typ.

Two PWM inputs

High-side and low-side PWM capable

Active free-wheeling

Up to 25 kHz PWM frequency

32 bit serial peripheral interface (SPI) with cyclic redundancy check (CRC)

Very low quiescent current consumption in Stop Mode and Sleep Mode

Periodic cyclic sense and cyclic wake in Normal Mode, Stop Mode and Sleep Mode

Reset and interrupt output

Drain-source monitoring and open-load detection

Configurable time-out and window watchdog

Overtemperature and short circuit protection features

Leadless power package with support of optical lead tip inspection

Green Product (RoHS compliant)

Applications

Auxiliary pumps (fuel, water, etc.)

Blower motor

Engine cooling fan

Sunroof module

Transfer case
