The BTN9960LV pairs a p-channel high voltage side switch with an n-channel low voltage side switch to form a half-bridge and adds an integrated circuit to protect the device. The IC also features microprocessor-compatible logic level inputs, current sense diagnostics, slew rate adjustment, and dead time generation. Over-temperature, over-voltage, under-voltage, over-current, and short-circuit protection are part of the package.

Product Attributes

Motor Type - Stepper: Bipolar

Motor Type - AC, DC: Brushed DC

Function: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge

Interface: PWM

Technology: DMOS

Voltage - Supply: 4.5V ~ 40V

Voltage - Load: 4.5V ~ 40V

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

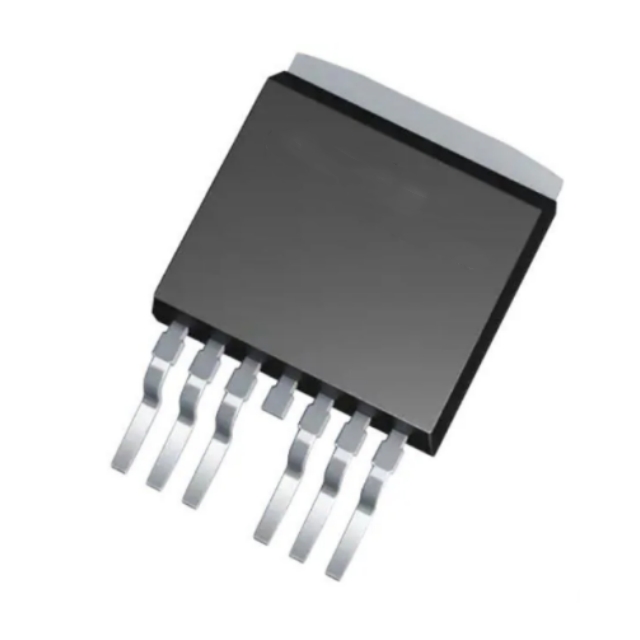

Package/Housing: 7-PowerSFN

Supplier Device Package: PG-HSOF-7-1

APPLICATIONS

● 12 V brushed DC motors for automobiles

● Fuel pumps, washer pumps
