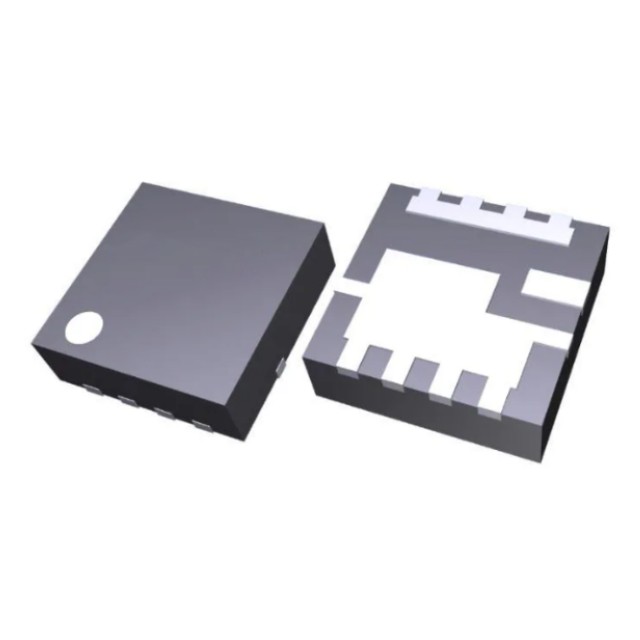

The power MOSFET IQDH45N04LM6CG 40 V is available in a PQFN 5x6 mm2 drop-source package. The device features an ultra-low RDS(ON) of 0.45 mΩ and excellent thermal performance for easy power loss management. This enables higher system efficiency and power density for a variety of end-use applications such as intermediate bus conversion in battery-powered tools, SMPS, telecom power supplies, and high-performance computing such as hyperscale data centers and AI server farms.

Features

- N-channel, logarithmic level

- Extremely low on-resistance RDS(ON)

- Superior heat resistance

- Passes 100% aging test

- Lead-free plating; RoHS compliant

- Halogen-free, IEC 61249-2-21 compliant

IQDH45N04LM6CG Product Attributes

Product Category: MOSFET

Mounting Style: SMD/SMT

Package / Case: TTFN-9

Transistor Polarity: N-Channel

Vds-Drain-source breakdown voltage: 40 V

Id-Continuous drain current: 637 A

Rds On-drain on-resistance: 450 uOhms

Vgs - gate-source voltage: - 20 V, + 20 V

Vgs th - gate-source threshold voltage: 2.3 V

Qg-gate charge: 62 nC

Minimum operating temperature: - 55 C

Maximum operating temperature: + 175 C

Pd-Power dissipation: 333 W

Channel mode: Enhancement

Trademark: OptiMOS

Series: OptiMOS 6

Configuration: Dual

Downtime: 14 ns

Product Type: MOSFET

Rise Time: 6 ns

Factory Package Quantity: 5000

Sub Category: MOSFETs

Typical Off Delay Time: 49 ns

Typical Turn-On Delay Time: 9 ns
