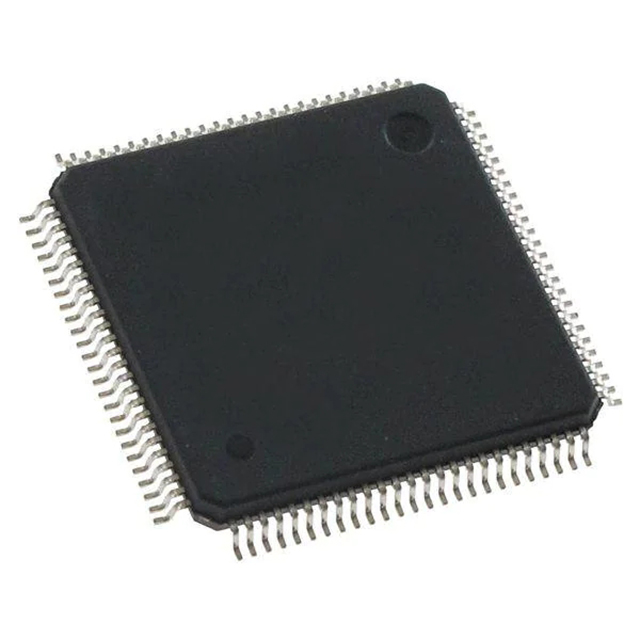

CYAT81650-100AA48 is a capacitive touchscreen controller with the sensing and processing technology to resolve the locations and report the positions of up to ten fingers on the touchscreen.

CYAT81650-100AA48 device contains a high-performance Arm® 32-bit CPU with an integrated hardware multiply unit.

Features

32-bit Arm@ Cortex CPU

Register-configurable

Noise- suppression technologies for display and EMI

Effective 20-V drive for higher signal-to-noise ratio

External display synchronization

Water rejection and wet finger tracking using DualSense

Multitouch glove with automatic mode switching

Low-power look-for-touch mode

Field upgrades via bootloader

Touchscreen sensor self-test

Low power CAPSENSETM wake-up button with power consumption of 50 μA

Low power wake-on-touchscreen with power consumption of 120 μA

Screen sizes up to 8.5-inch diagonal

6.2-mm electrode pitch; 16:9 aspect ratio

Up to 48 sense pins, 560 intersections; 16:9 aspect ratio

Refresh rate up to 250 Hz; other rates configurable

TX frequency up to 350 kHz

1.71 V to 1.95 V and 3.0 V to 5.5 V logic and digital I/Os supply

3.0 V to 5.5 V analog supply

9-mW average power

11-µW typical deep-sleep power

Sensor-on-Lens (SOL)

Plastic (PET) and glass-sensor substrates

LCD, AMOLED, and IPS displays
