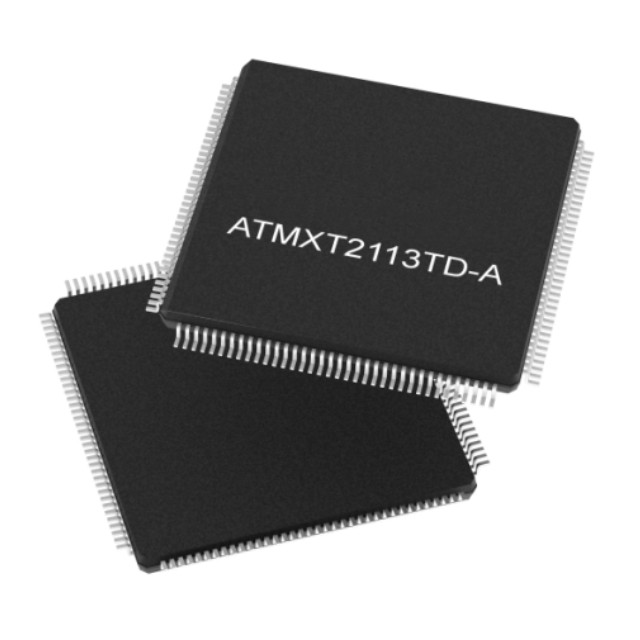

ATMXT2113TD-ATKDVA1 (maXTouch Series) 2-Wire Capacitive Touch Screen Controller, LQFP-144

Basic Information:

Model: ATMXT2113TD-ATKDVA1

Series: maXTouch™

Package: LQFP-144

Type: Touch Screen Controller

Overview: ATMXT2113TD-ATKDVA1 - maXTouch™ 2112 Node Touch Screen Controller.

ATMXT2113TD-ATKDVA1 Specifications:

Product Category: Automotive Touch Screen Controller

Interface Type: I2C, SPI

Supply Voltage-Max: 3.47 V

Minimum Operating Temperature: - 40 °C

Maximum Operating Temperature: + 85 °C

Mounting Style: SMD/SMT

Package / Case: LQFP-144

ATMXT2113TD-ATKDVA1 Product Features:

Up to 97 touch channels

Up to 4 instances of synchronised knobs with optional press detection

Operates on standard touch sensor mode

Supports a wide range of knob shapes, sizes, positions and detent counts

Individually configurable to maXTouch configuration settings, no firmware changes required

Operates on touchscreens and knobs while wearing thick gloves

Comprehensive KoD™ development tool suite and knob reference design

Automotive compliant (Class 2) LQFP144 with -40 to +105 degree Celsius operating temperature range
