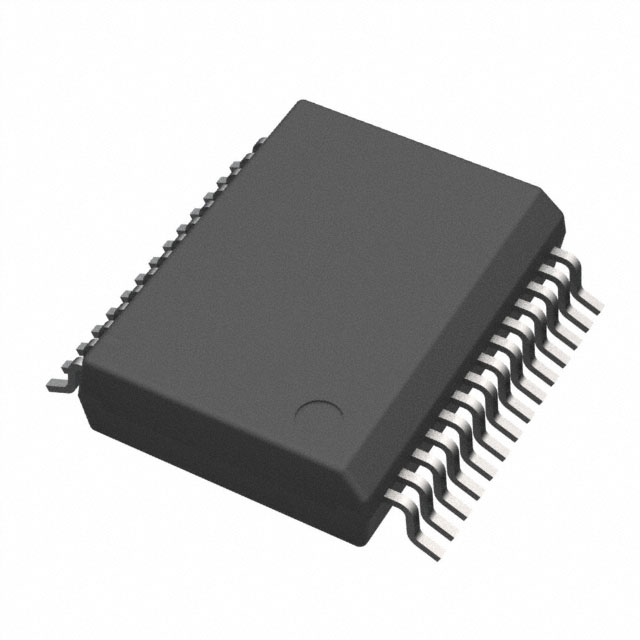

The ADUM4137WBRNZ is a single-channel gate driver optimised for driving insulated gate bipolar transistors (IGBTs). Analog Devices' iCoupler® technology provides isolation between the input signal and the output gate. Analog Devices' chip gate transformers also provide isolated communication between control information. Isolated control information communication is provided between the high-voltage and low-voltage domains of the chip. Information about chip status can be read from dedicated fault outputs for chip status information. Isolated faults are provided to report overcurrent events, remote temperature overheat events.

Product Attributes

Technology: Magnetic coupling

Number of Channels: 1

Voltage - Isolation: 5000Vrms

Common mode transient immunity (min): 150kV/µs

Propagation Delay tpLH / tpHL (max): 131ns, 137ns

Pulse Width Distortion (max): 70ns (min)

Rise/fall time (typical): 105ns, 107ns

Current - Peak Output: 6A

Voltage - Output Supply: 12V ~ 25V

Rating: Automotive Grade

Qualification: AEC-Q100

Operating Temperature: -40°C ~ 150°C

Mounting Type: Surface Mount

Package/Housing: 28-BSSOP (0.295", 7.50mm wide)

Supplier Device Package: 28-SOIC-W-FP

Certification Body: CSA, UR, VDE

Applications

● MOSFET/IGBT gate drivers

● Photovoltaic (PV) inverters

● Motor drives

● Power supplies
