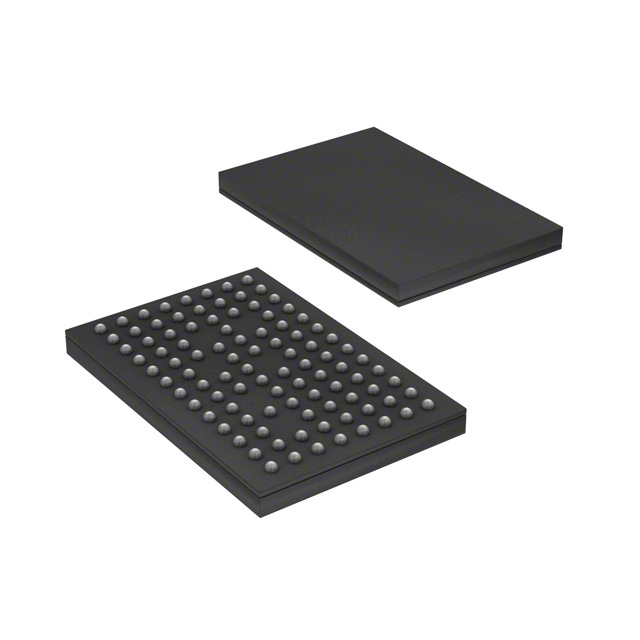

TPS659112A2NMAR device is an integrated power management IC (PMIC) available in a 98-pin 0.65-mm pitch BGA package. The TPS65911 device is dedicated to applications powered by one Li-lon or Li-lon polymer battery cell, 3-series Ni-MH cells, or a 5-V input, and applications that require multiple power rails. The device provides three step-down converters, one controller for external FETs to support high current rail, eight LDOs, and the device is designed to be a flexible PMIC for supporting different processors and applications.

Features

Embedded Power Controller (EPC) With EEPROM Programmability

Two Efficient Step-Down DC-DC Converters for Processor Cores (VDD1, VDD2)

One Efficient Step-Down DC-DC Converter for /0 Power (VIO)

One Controller for External FETs (VDDCtrl)

Dynamic Voltage Scaling (DVS) for Processor Cores

Eight LDO Voltage Regulators and One RTC LDO (Supply for Internal RTC)

One High-Speed 1IC Interface for General-Purpose Control Commands (CTL-IPC)

Two Independent Enable Signals for Controlling Power Resources (EN1, EN2)

Altermatively, the EN1 and EN2 Pins can be Used as a High-Speed Ic Interface Dedicated for Voltage Scaling for VDD1 and VDD2

Thermal Shutdown Protection and Hot-Die Detection

A Real-Time Clock (RTC) Resource With:

Ocillator for 32.768-kHz Crystal or 32-kHz Built-in RC Ocillator

Date, Time, and Calendar

Alarm Capability

Applications

Portable and Hand-Held Systems
