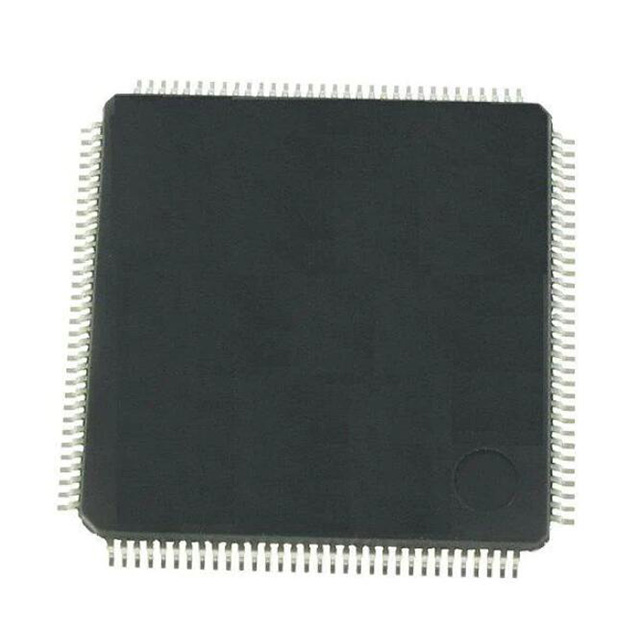

CYAT817AZS98-5BFBA PSoC™ Automotive Multitouch Generation 7XL

Product Attributes

Touchscreen 2 Wire Capacitive

Interface I²C, SPI

Voltage - Supply 1.71V ~ 1.95V, 3V ~ 5.5V

Operating Temperature -40°C ~ 105°C (TA)

Mounting Type Surface Mount

Package / Case 128-LQFP

Supplier Device Package 128-TQFP (14x20)

Features

Multi-touch capacitive touchscreen controller

- 32-bit Arm® Cortex® CPU

- Register-configurable

- Noise-suppression technologies for display and EMI

• Hover sensing (up to 35 mm)

• Force Touch

• Slider sensing

• CAPSENSE™ button sensing

• Wake-up button sensing

• Low-power wake-up button (< 50 µA)

• Wake-on-touch screen

• Runtime diagnostics

• Support for split screen

• Support for free form shapes

• Effective 20-V drive for higher signal-to-noise ratio (SNR)[1]

• AutoArmor improves both electromagnetic emissions and immunity

• External display synchronization

- Water rejection and wet-finger tracking using DualSense

- Multi-touch glove with automatic mode switching

• Ten fingers with thin glove (≤ 1-mm thick)

• Two fingers with thick glove (≤ 5-mm thick)
