MCP3422A7-E/MS is the low noise and high accuracy 18-Bit delta-sigma analog-to-digital (ΔΣ A/D) converter family members of the MCP342X series from Microchip Technology Inc. These devices can convert analog inputs to digital codes with up to 18 bits of resolution.

Product Attributes

Number of Bits 18

Sampling Rate (Per Second) 3.75

Number of Inputs 2

Input Type Differential

Data Interface I²C

Configuration MUX-PGA-ADC

Number of A/D Converters 1

Architecture Sigma-Delta

Reference Type Internal

Voltage - Supply, Analog 2.7V ~ 5.5V

Voltage - Supply, Digital 2.7V ~ 5.5V

Operating Temperature -40°C ~ 125°C

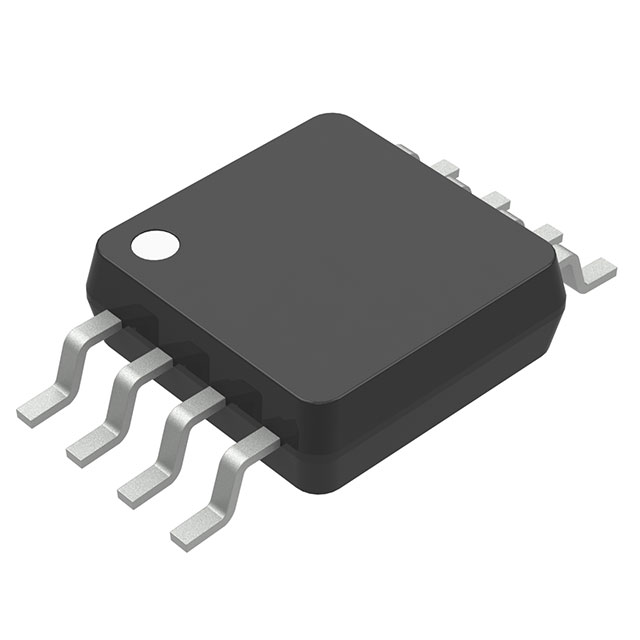

Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package 8-MSOP

Mounting Type Surface Mount

Typical Applications

• Portable Instrumentation and Consumer Goods

• Temperature Sensing with RTD, Thermistor, and Thermocouple

• Bridge Sensing for Pressure, Strain, and Force

• Weigh Scales

• Battery Fuel Gauges

• Factory Automation Equipment
