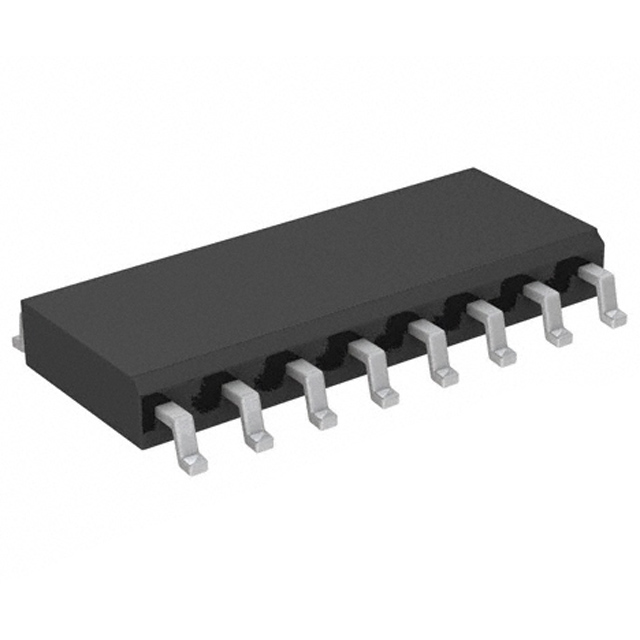

MCP3008T-E/SL is successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and hold circuitry. The MCP3008 is programmable to provide four pseudo-differential input pairs or eight single-ended inputs.

Product Features

10-bit resolution

± 1 LSB max DNL

± 1 LSB max INL

8 input channels

Analog inputs programmable as single-ended or pseudo-differential pairs

On-chip sample and hold

SPI serial interface (modes 0,0 and 1,1)

Single supply operation: 2.7V - 5.5V

Sample Rate:

- 200 ksps max. at VDD = 5V

- 75 ksps max. at VDD = 2.7V

Low power CMOS technology

5 nA typical standby current, 2 µA max.

500 µA max. active current at 5V

Applications

Sensor Interface, Process Control

Data Acquisition, Battery Operated Systems
