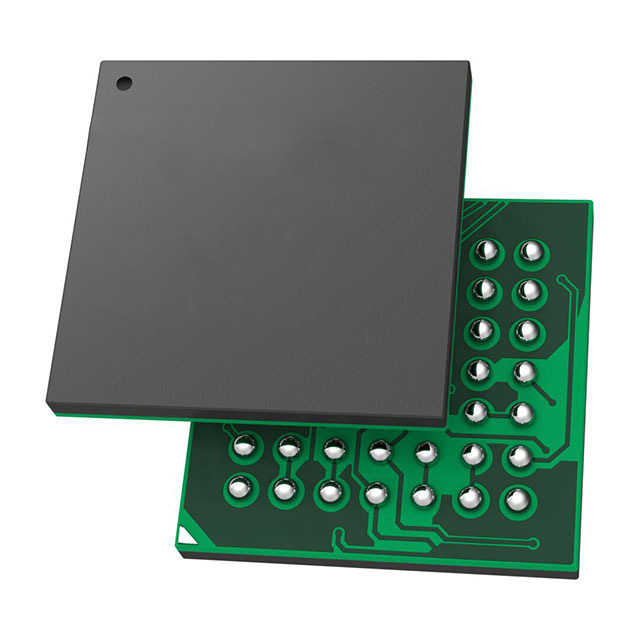

ADATE320-1KCPZ is a complete, single-chip ATE solution that performs the pin electronics functions of a driver, comparator, and active load (DCL), and a four quadrant per pin parametric measurement unit (PPMU).

Product Features

► 1.25 GHz, 2.5 Gbps data rate

► 3-level driver with high-Z and reflection clamps

► Window and differential comparators

► ±25 mA active load

► Per pin parametric measurement unit (PMU) with a −1.5 V to +4.5 V range

► Low leakage mode (typically <5 nA)

► Integrated 16-bit DACs with offset and gain correction

► Voltage range: −1.5 V to +4.5 V

► Precision trimmed termination: 50.0 Ω

► Unterminated swing: 50 mV minimum to 6.0 V maximum

► 400 ps minimum pulse width, 1.0 V programmed swing

► 25 ps deterministic jitter

Applications

► Automatic test equipment (ATE)

► Semiconductor/board test systems

► Instrumentation and characterization equipment
