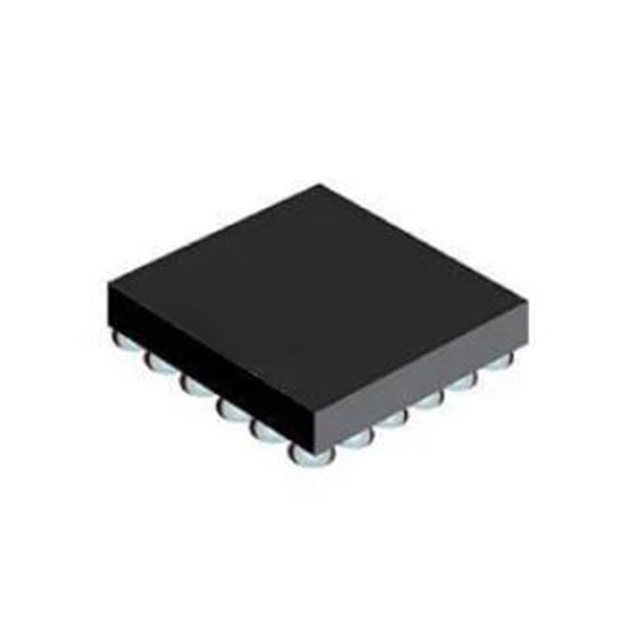

AFE4960YBGR is Two-Channel ECG, Respiration and Pace Pulse Detection Analog Front End (AFE) for Clinical Wearables. The AFE4960 can be configured as either a 2-channel ECG receiver or as a 1-channel ECG receiver and a respiration impedance channel.

Product Features

Supports a 3-lead ECG, extendable to 5 leads or higher by operating two or more AFEs in parallel

Single channel ECG acquisition up to 2.048 kHz

2 channel ECG acquisition up to 1.36 kHz/ channel

RLD output to set body bias through third electrode

Programmable INA gain from 2~12

>1 GΩ input impedance, CMRR > 100 dB

Input noise (0.5-150 Hz): 13 µVpp at INA gain of 3; 5 μVpp at INA gain of 12

Integrated 370 Hz anti-aliasing low pass filter

Applications

Wireless patches for in-patient and out-patient monitoring

Event monitors for arrhythmia detection

Hand-held ECG monitor

Portable multi-lead ECG

Patient vital sign monitoring: holter, event, stress and telemedicine
