The MAX32666GXMBL UB class microcontroller is an advanced system on chip microcontroller designed for use in sensors, wearables, and gaming devices. The microcontroller also uses Arm® Cortex®-M4 (with floating-point unit (FPU) CPU) for efficient computing of complex functions and algorithms, as well as integrated power management. The device features Bluetooth ®5 low power radio that supports remote (4x) and high throughput (2Mbps), as well as Maxim's Hardware Security suite Trust Protection Unit (TPU). The device is equipped with high-capacity onboard memory, which contains 1MB of flash memory and up to 560KB of SRAM that can be configured as 448KB of SRAM with error-correcting coding (ECC) capabilities.

specification

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit

Speed: 96MHz

Peripheral: undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 50

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 560K x 8

Data converter: A/D 8x10b trig integral

Oscillator type: external, internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: surface mount type

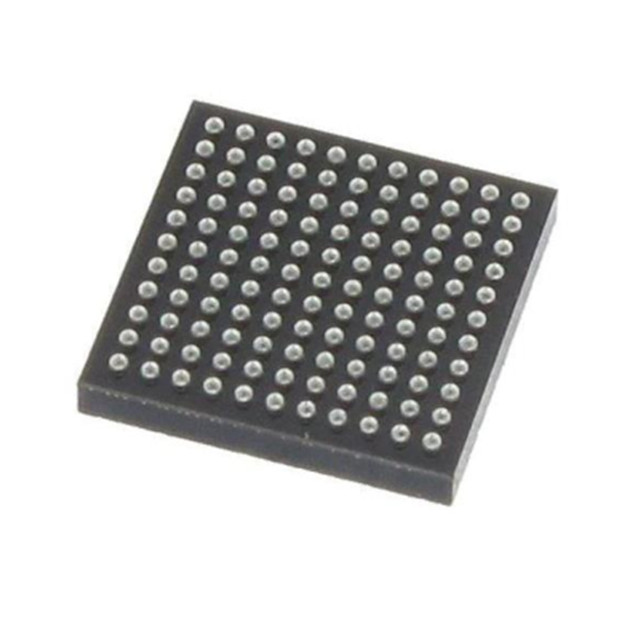

Package/case: 121-LFBGA

Supplier Device Package: 121-CTBGA (8x8)

Application

Connected home

Industrial sensor

Payment/fitness/medical wearables

telemedicine

Game equipment

Ear-wearing devices
