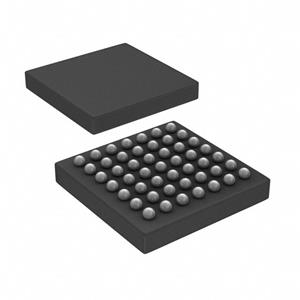

STM32L431CCY6 is the ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

STM32L431CCY6 devices embed high-speed memories (Flash memory up to 256 Kbyte, 64 Kbyte of SRAM), a Quad SPI flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

Specifications Of STM32L431CCY6

Core: ARM Cortex M4

Program Memory Size: 256 kB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 80 MHz

Number of I/Os: 38 I/O

Data RAM Size: 64 kB

Supply Voltage - Min: 1.71 V

Supply Voltage - Max: 3.6 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

DAC Resolution: 12 bit

Data RAM Type: SRAM

Interface Type: CAN, I2C, LPUART, SAI, SPI, USART

Moisture Sensitive: Yes

Number of ADC Channels: 10 Channel

Number of Timers/Counters: 11 Timer

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
