The UCC28781QRTWRQ1 is a zero-voltage switching (ZVS) controller that can be used at ultra-high switching frequencies to fully reduce transformer size and achieve high power density.

The controller uses direct synchronous rectifier (SR) control to directly drive SR FETs, which improves efficiency and simplifies design, eliminating the need for a separate SR controller. (Isolated applications require an isolated gate driver IC.)

Features

- Meets AEC-Q100 for automotive applications:

- Temperature Class 1, TA: -40°C to 125°C

- Device HBM ESD Classification 2

- Device CDM ESD Classification C2A

- Providing Functional Safety

- Documentation to aid in functional safety system design

- Switching frequency: > 500 kHz

- Achieves over 93% peak efficiency

- Achieves standby power consumption of less than 50mW (basic system)

- Zero-voltage switching (ZVS) adaptive control and dead-time optimisation

- EMI frequency dithering without trade-offs for transient response or audible noise

- Programmable adaptive burst mode (ABM) with internal compensation

- Over-temperature, over-voltage, output short-circuit, over-current, over-power and pin-fault protection

- Automatic fault recovery response

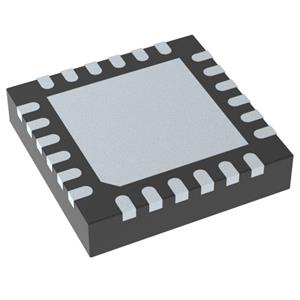

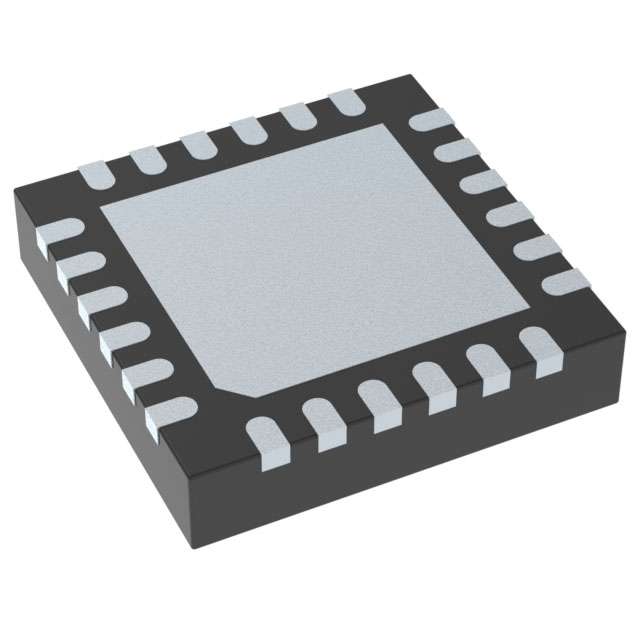

- 4 mm × 4 mm 24-pin QFN package

Applications

- Traction inverters

- Auxiliary bias supplies

- Portable DC chargers

- DC or AC charging stations

- DC/DC converters
