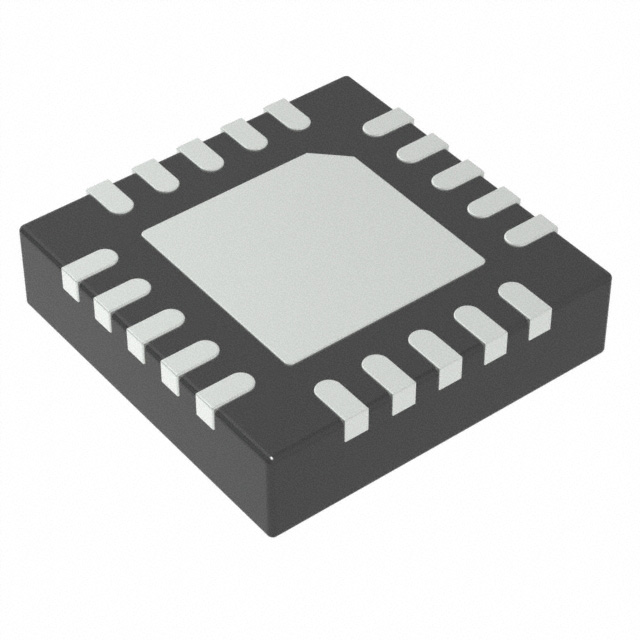

MCP3464RT-E/NC is 8-channel, 16-bit, Delta-Sigma Analog-to-Digital Converters (ADCs) with programmable data rate of up to 153.6 ksps. It offer integrated features, such as internal voltage reference, internal oscillator, temperature sensor and burnout sensor detection, in order to reduce system component count and total solution cost.

Product Features

16-Bit Resolution

Programmable Data Rate: Up to 153.6 ksps

Programmable Gain: 0.33x to 64x

97.2 dB SINAD, -116 dBc THD, 120 dBc SFDR (Gain = 1x, 4800 SPS)

Low Noise: 2.3 µVRMS (Gain = 16x, 9600 SPS)

Wide Input Voltage Range: 0V to AVDD

Selectable Internal 2.4V Voltage Reference with 15 ppm/°C Drift

Differential Voltage Reference Inputs

Internal Oscillator or External Clock Selection

Ultra-Low Full Shutdown Current Consumption (< 2.4 µA)

Extended Temperature Range: -40°C to +125°C

Applications

Precision Sensor Transducers and Transmitters: Pressure, Strain, Flow and Force Measurement

Factory Automation and Process Controls

Portable Instrumentation

Temperature Measurements
