DSPIC33AK128MC105-I/PT: 200MHz, 32-bit Single-Core Digital Signal Controller (DSC), TQFP-48

Model: DSPIC33AK128MC105-I/PT

Family: dsPIC™ 33AK

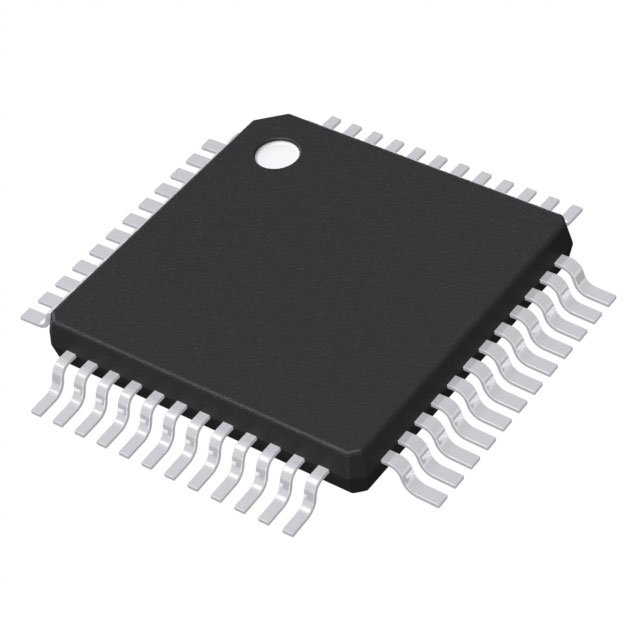

Package: TQFP-48

Type: Digital Signal Controller - DSC

Overview:

The DSPIC33AK128MC105-I/PT is a 200MHz, 32-bit dsPIC33A digital signal controller (DSC) with a 32/64-bit floating-point unit (FPU), up to 128KB of Flash programme memory and 16KB of SRAM data memory. High-speed 40MSPS 12-bit ADCs, high-bandwidth 100MHz op amps with low input voltage offset, fast 5nS comparators, and high-speed PWM outputs are designed to optimise real-time control applications.

DSPIC33AK128MC105-I/PT Specifications:

Family: dsPIC™ 33AK

Core Processor: dsPIC33A

Core Specification: 32-bit

Speed: 200MHz

Connectivity: I2C, QEI, SENT, SPI, UART/USART

Peripherals: Power-down Detect/Reset, DMA, I2S, Motor Control PWM POR, PWM, WDT

Number of I/O: 35

Program Memory Capacity: 128KB (128K x 8)

Program Memory Type: Flash

RAM Size: 16K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 18x12b SAR;D/A 3x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85 °C (TA)

Mounting Type: Surface Mount

Vendor Device Package: 48-TQFP (7x7)

Package/Case: 48-TQFP
